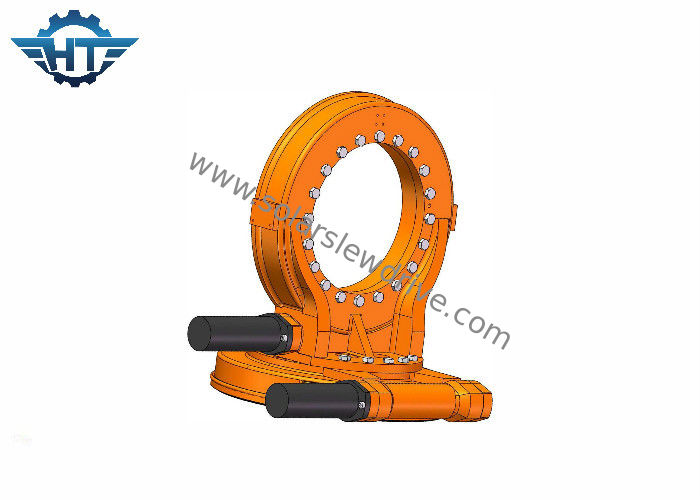

25 Years Life-Cycle Slew Drive Gearbox, High Torque And Precision For Dual Axis Solar Tracking System
Description
Holding torque: 40560 N.m
Static axial rating: 77 kN
Static radial rating: 190 kN
Gear ratio: 78:1
Tracking precision: ≤ 0.1
Tilting moment torque: 25000 N.m
Output torque: 5800 N.m
Weight: 160 kg
Hangtuo slewing drive mainly consists of a slewing bearing, a worm gear, housing and a hydraulic or an electric motor.
Parameters of SDE Series
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 705 |
Application
The enclosed housing slewing drives are widely used in the different engineering application such as heavy loader transporters, harbor mobile crane, ship lifting, claw trucks, container lift crane, and movable gantry cranes, mine machine, excavator, concrete machine, paper machine, as well as wind power generation system also use our slewing drive.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels.
Generally, 3 inch slewing drive is suitable for solar power system coming with 3-5㎡ solar panel, 7 inch for 10-17 ㎡ solar panel, 9 inch for 18-30 ㎡, 12 inch for 31-45㎡, and 14 inch for 46-60㎡.
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
