Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE3" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 170~195/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model Number: | SE3 With Motor | Holding Torque: | 3000 Nm |
|---|---|---|---|
| Tilting Torque: | 1500 Nm | Output Torque: | 600 Nm |
| Static Axial Load: | 30 KN | Static Radical Load: | 16 KN |
| Raw Material: | 50Mn, 42CrMo | Weight: | 10.5 Kg |
| Highlight: | hydraulic slew motor,solar tracker drive |
||

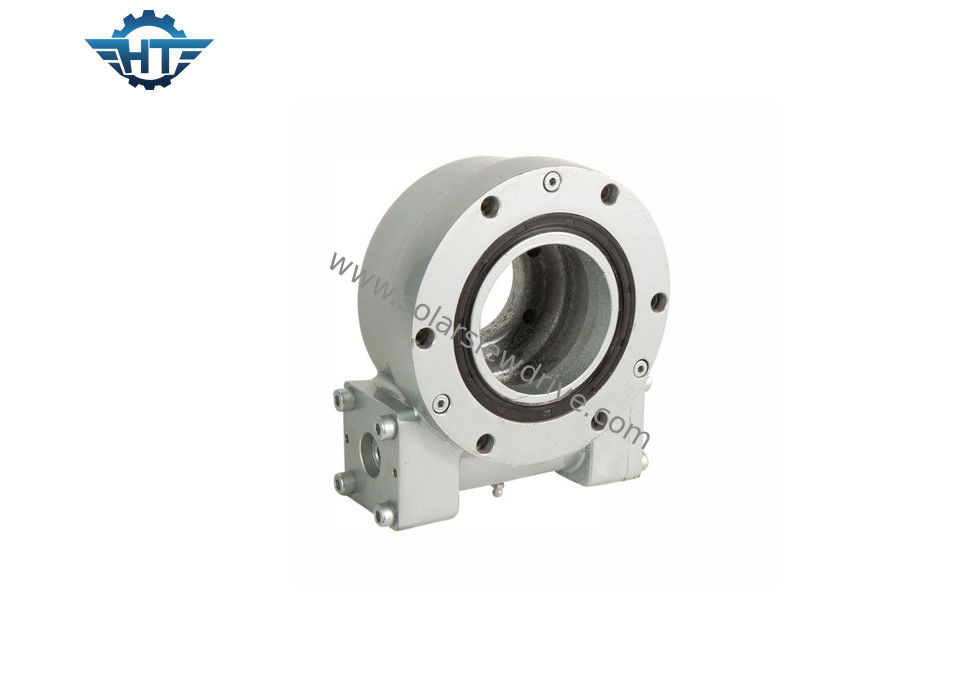

SE3 Slew Drive Gearbox With 24vdc Motor With Hall Sensor Or Encoder For Solar Tracker
Product Description
1. Those products are designed for long life, working in harsh environment conditions.
2. Various sizes available, including customized.
3. Easy to installation and product warranty for 5 years, warranty extension service provided.
| Model | SE3 |
| Ratio | 31:1 |
| Rated Output Torque (N.m) | 600 |
| Tilting Torque (N.m) | 1500 |
| Holding Torque (N.m) | 3000 |
| Axial Load (kN) | 30 |
| Radial Load (kN) | 16 |
| Efficiency | 40% |
| Precision (°) | 0.1 |
| Self-locking | Yes |
| Weight (kg) | 8 |
| Installation Holes | 6*M10 |
| Center Circle Diameter | Φ 80 mm |
| Inner Hole | Φ 65 mm |
| Work Temperature | － 30℃ ~＋80℃ (optional special grease used in colder or hotter places) |
| Gear Motor Matched | 24V, 12VDC brushed with hall sensor or encoder, brushless motor |
Our Services
1. Any inquiries will be replied within 24 hours;
2. Professional manufacturer;
3. OEM/ODM available:
3.1 Customized design;
3.2 Customized dimension;
3.3 Customized package;
4. High quality, reasonable & competitive price, fast lead time.
5. After-Sale Service;
5.1 All products will have been strictly Quality checked in warehouse before packing.
5.2 All products will be well packed before shipping.
5.3 All our products have 10 years warranty.
6. Faster delivery:
Sample order in stock, and 15-45 days for bulk production.
7. Shipping:
1. Sea transportation: shipping FCL or shipping LCL, this is the most common way
2. Land transportation: this is suitable for the inland countries
3. Air transportation
4. Express: DHL,TNT,UPS,Fedex etc.
Support sea transportation , air transportation, road transportation, Express such as TNT, DHL,UPS,EMS, Fedex,etc for sample and small cargo transportation.
Packaging
1. Normal export package: packed with fumigration-free wooden case
2. According to clients' special requirements.
FAQ
In order to help you get the right system, please offer the following necessary info,
1. The dimension of the solar panel (L*W*H)
2. What’s the kind of the system, dual axis or single axis
3. The order quantity for us to confirm delivery and shipping
