Solar Tracker Slew Drive
Created with Pixso. 24V Geared Motor Solar Tracker Slew Drive For Dual Axis Solar Tracking System

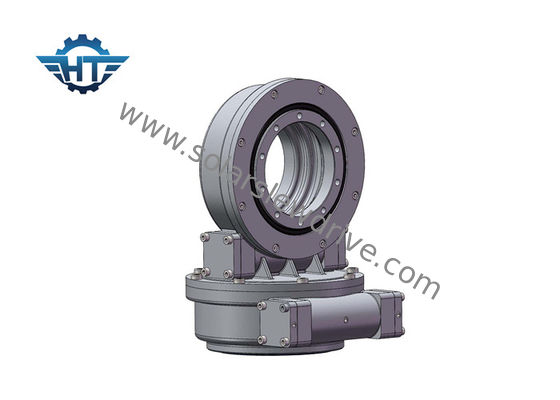

24V Geared Motor Solar Tracker Slew Drive For Dual Axis Solar Tracking System

Brand Name: HangTuo
Model Number: SDE7"
MOQ: 1 piece
Price: USD 398~456/ pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Material:
50Mn, 42CrMo
Model:
SDE7"
Gear Ratio:
57:1
Rated Output Torque:
2000 Nm
Holding Torque:
13500 Nm
Tilting Torque:
13200 Nm
Efficiency:
40%
Standard Color:
RAL 9006
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

slewing drive for solar tracking system

,

solar tracker drive

Product Description



High holding Torque Solar Tracker Slew Drive With 24V Geared Motor For Solar Tracking System



Description



Solar Tracker dual axis slew drive is perfect solution in the dual axis solar tracking applications.



Dual axis slew drive have three types solutions with slew drives:



In general, for easy bracket structure, the sde slew drive would be the perfect solution, but the other two are also very popular.

  • Two SE slew drives
  • One SE slew drive and one VE slew drive

Slew Drives Applied In PV



Product Name SDE7 Slewing drive
Output Torque 980 N.m ; 723 ft.lbs
Max Output Torque 1938 N.m; 1429 ft.lbs
Tilting Moment Torque 7000 N.m; 5163 ft.lbs
Holding Torque 13200 N.m ; 9736 ft.lbs
Static Axial Rating 133.20 kN ; 29943 lb
Static Radial Rating 53 kN ; 11977 lb
Dynamic Axial Rating 31.90 kN ; 7171 lb
Dynamic Radial Rating 27.91 kN ; 6274 lb
Motor Alternatives 12V/24V Motor ; Stepper Motor ; Brushless Motor
Products Style Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower
Application Feature Solar Tracking System, Industrial Machinery
Solar System Square Meter 30 ㎡





Performance Table of SDE Slewing Drive



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Features



1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function



Applicatons



24V Geared Motor Solar Tracker Slew Drive For Dual Axis Solar Tracking System 0



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
