|Gear Ratio:||57:1||Rated Output Torque:||2000 Nm|
|Holding Torque:||13500 Nm||Tilting Torque:||13200 Nm|
|Efficiency:||40%||Standard Color:||RAL 9006|
worm gear slew drive,
slewing ring gear
Envelop Hourglass Worm Gear Slew Drive Gearbox With Reduction Motor For Solar Thermal Power
The principle of solar thermal power generation is to collect sunlight into a solar energy collection device through a mirror, and use solar energy to heat the heat transfer medium (liquid or gas) in the collection device, and then heat the water to form steam to drive or directly drive the generator to generate electricity.
In general, solar thermal power generation has the following four types: trough, tower, dish (disc), and Fresnel.
The trough type solar thermal power generation system is called a trough parabolic mirror solar thermal power generation system. The trough type parabolic concentrating collectors are arranged in series and parallel, heating the working medium, generating superheated steam, and driving the steam turbine generator set to generate electricity.
In 1973, the outbreak of the worldwide oil crisis stimulated the research and development of solar technology. Compared with solar cells, the price is high and the efficiency is low. The efficiency of solar thermal power generation is relatively high and the technology is relatively mature.
The disc type (also known as dish) solar thermal power generation system is the world's first solar power system. It is composed of a parabolic mirror composed of many mirrors. It receives the focus of the paraboloid and the heat transfer medium in the receiver is heated. Drive the engine to generate electricity at around 750℃.
The working principle is similar to trough type photothermal power generation, except that the Fresnel structure condenser is used instead of the mirror. This makes it relatively inexpensive, but the efficiency is correspondingly reduced.
Because such a system has only a few times of concentrating, the quality of the heated water vapor is not high, so that the annual power generation efficiency of the whole system can only reach about 10%; but due to the simple structure of the system and the direct use of heat-transfering medium to generate steam, Its construction and maintenance costs are also relatively low.
Slew Drives Applied In Tower CSP

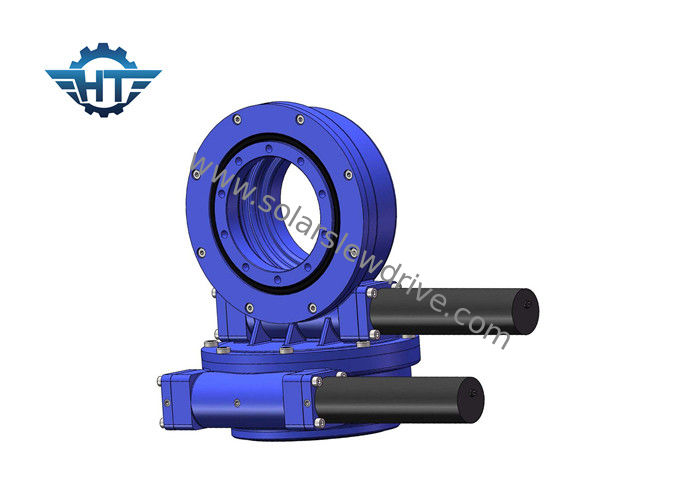

|Product Name||SDE7 Slewing drive with 43Nm 24Vdc gear motors|
|Output Torque||980 N.m ; 723 ft.lbs|
|Max Output Torque||1938 N.m; 1429 ft.lbs|
|Tilting Moment Torque||7000 N.m; 5163 ft.lbs|
|Holding Torque||13200 N.m ; 9736 ft.lbs|
|Static Axial Rating||133.20 kN ; 29943 lb|
|Static Radial Rating||53 kN ; 11977 lb|
|Dynamic Axial Rating||31.90 kN ; 7171 lb|
|Dynamic Radial Rating||27.91 kN ; 6274 lb|
|Motor Alternatives||380V/220V AC Motor ; Stepper Motor ; Brushless Motor|
|Products Style||Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower|
|Application Feature||Solar Tracking System, Industrial Machiner|
Performance Table of Dual Axis Slewing Drive
|Model||Ratio||Rated Output Torque(N.m)||Tilting Torque(N.m)||Holding Torque(N.m)||Axial Load(kN)||Radial Load(kN)||Efficiency||Precision(°)||Self-locking||Weight(kg)|
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
