Envelope Worm Slew Drive Gearbox With 12V DC Planetary Gear Motor For Solar Tracking System

Envelope Worm Slew Drive Gearbox With 12V DC Planetary Gear Motor For Solar Tracking System

  • Envelope Worm Slew Drive Gearbox With 12V DC Planetary Gear Motor For Solar Tracking System
  • Envelope Worm Slew Drive Gearbox With 12V DC Planetary Gear Motor For Solar Tracking System
Envelope Worm Slew Drive Gearbox With 12V DC Planetary Gear Motor For Solar Tracking System
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Slewing Drive Material: 42CRMN Or 50Mn
Application: Solar Power System Warranty: 10 Years
Color: Customer Required Size: 3 Inch - 25 Inch
Motor: 24V Feature: Long Life
High Light:

worm gear slew drive

,

slewing ring gear

Vertical VE5 Small Slew Drive With 12 VDC Gearbox For Concentrated Fresnel Stations



Description



The trough type solar thermal power generation system is called a trough parabolic mirror solar thermal power generation system. The trough type parabolic concentrating collectors are arranged in series and parallel, heating the working medium, generating high temperature steam, and driving the steam turbine generator set to generate electricity.



Trough solar thermal power generation uses solar trough parabolic mirrors for solar thermal power generation. It is a multi-channel parabolic concentrating collector, arranged in series and parallel, so that it can collect higher temperature heat, heat the working fluid to generate steam, and drive the steam turbine generator to generate electricity. The trough solar thermal power generation is mainly composed of four parts: Mirror field, heat exchange system, heat storage device and steam turbine power generation device.



The slew drives are needed in making the mirror tracking towards the sun all the time to collect the heat.

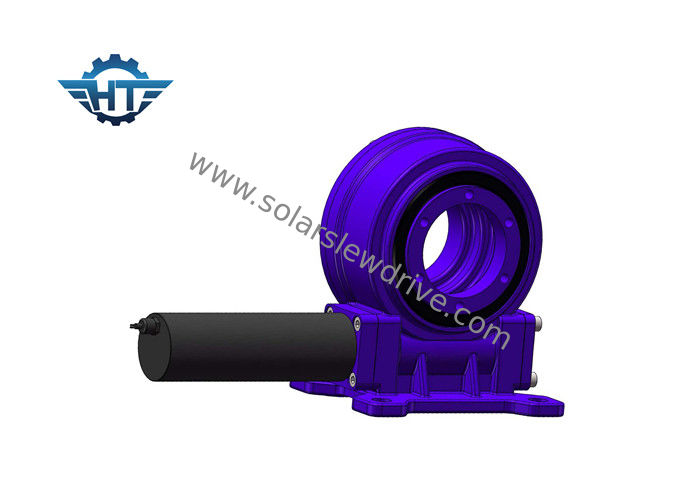

Envelope Worm Slew Drive Gearbox With 12V DC Planetary Gear Motor For Solar Tracking System 0

Envelope Worm Slew Drive Gearbox With 12V DC Planetary Gear Motor For Solar Tracking System 1



Features



1. Rotate from 0~180°

2. Connect a driving motor on the left or right side

3. Grease filled before factory

4. Simple installation

5. Low maintenance

6. The gear is self-locking; therefore a brake is not necessary

7. High backholding torque, suitable for vertical installation



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg



Customized Services



1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
