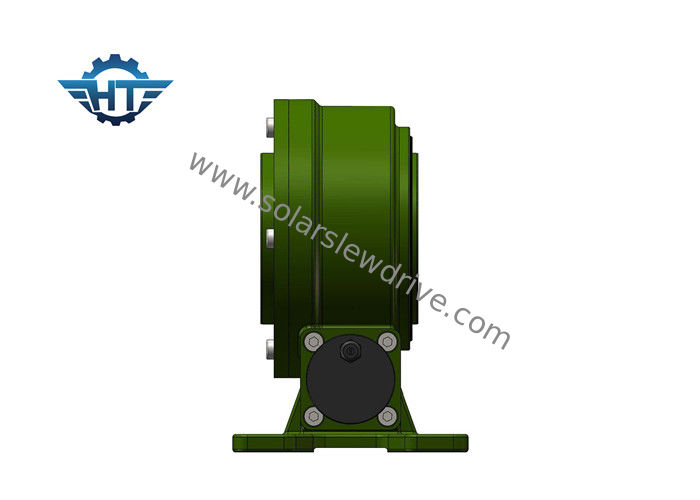

VE7 Worm Gear Slew Drive Gearbox With Electrical Motors For Horizontal Single Axis Solar Trackers

VE7 Worm Gear Slew Drive Gearbox With Electrical Motors For Horizontal Single Axis Solar Trackers

  • VE7 Worm Gear Slew Drive Gearbox With Electrical Motors For Horizontal Single Axis Solar Trackers
  • VE7 Worm Gear Slew Drive Gearbox With Electrical Motors For Horizontal Single Axis Solar Trackers
VE7 Worm Gear Slew Drive Gearbox With Electrical Motors For Horizontal Single Axis Solar Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: VE7"
Gear Ratio: 57:1 Rated Output Torque: 1750 Nm
Holding Torque: 13200 Nm Tilting Torque: 7000 Nm
Efficiency: 40% Standard Color: RAL 9006
High Light:

worm gear slew drive

,

slewing ring gear

VE7 Worm Gear Slew Drive Gearbox With Electrical Motors For Horizontal Single Axis Solar Trackers



Description



Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008.

We devote ourselves to the R&D of customized slewing bearing with high precision,special purpose and requirements.

With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.

Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.

Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.



VE7 Worm Gear Slew Drive Gearbox With Electrical Motors For Horizontal Single Axis Solar Trackers 0



Features



1. Rotation ±60 or 360 degrees

2. Connection of a driving motor from the left or right side,

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping

8. High accuracy

9. IP66 protection grade



Our Services & Strength



1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System .
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis.
6. OEM service

6.1 We provide standard products and non-standard products;

6.2 We provide customized samples, customized drawings, door-to-door mapping and other services;

6.3 We provide a full range of services, including design, processing, packaging, transportation, etc.


Packaging & Shipping



1. Filling with rust-proof oil

2. Packing with protective layers

3. Fixed in the plywood case, pallet, steel frame


Technical Date of Vertical Series



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
