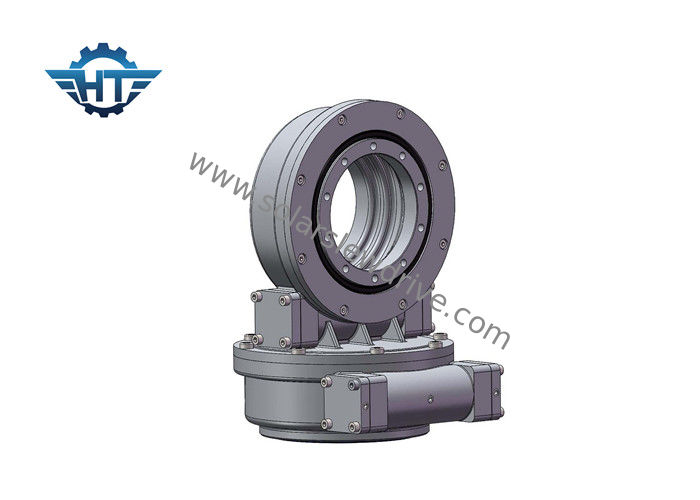

Dual Axis Slew Ring Drive Gearbox With Planetary Geared Motor For Solar Tracker

Dual Axis Slew Ring Drive Gearbox With Planetary Geared Motor For Solar Tracker

  • Dual Axis Slew Ring Drive Gearbox With Planetary Geared Motor For Solar Tracker
  • Dual Axis Slew Ring Drive Gearbox With Planetary Geared Motor For Solar Tracker
Dual Axis Slew Ring Drive Gearbox With Planetary Geared Motor For Solar Tracker
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SDE7"
Gear Ratio: 57:1 Rated Output Torque: 2000 Nm
Holding Torque: 13500 Nm Tilting Torque: 13200 Nm
Efficiency: 40% Standard Color: RAL 9006
Axial Load: 34 KN Radial Load: 58 KN
High Light:

worm gear slewing ring

,

worm gear motor



SDE Series Dual Axis Electric Slew Drive With 24V Dc Motor For Solar Tracking System


Introduction

Dual axis slewing drives are perfect for situations which need rotate both vertically and horizontally. Typical applications include dual axis solar trackers, satellite and radar dishes, machines which need moving 360 degrees at both directions.


Features

1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function

Performance Chart of SDE


Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 21kg
5" 37:1 650 5000 16 27 9200 40% ≤0.1 Yes 32kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 54kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 88kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 157 kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 214kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 315kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 481kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 682 kg


Electric Gear Motor


Motor Data Planetary Data
Rated Voltage 24VDC Ratio 398:1
Rated Current 1.3A Output Torque 43Nm
Rated Speed 800Rpm Output Speed 2Rpm
Protected Level IP55/65/66 Noise <60db


 Glossary of Key Parameters

Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the qorque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.
Radial load: Load vertical to the axis of slewing bearing
Axial load: Load parallel to the axis of slewing bearing
Holding torque:It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque.
Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.

Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
