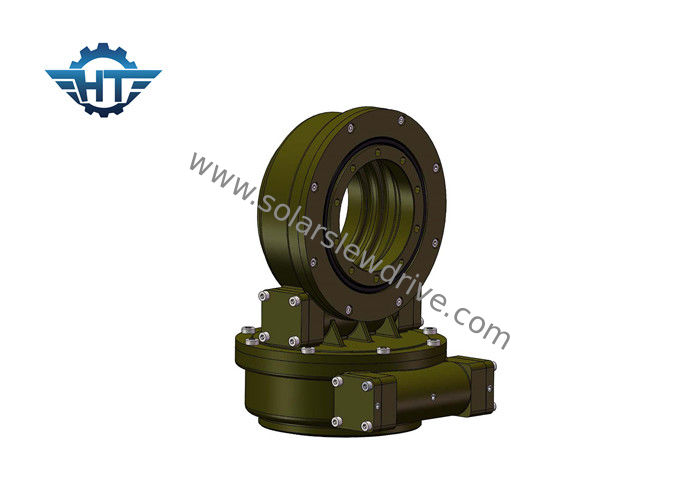

7 Inch Dual Axis Slew Drive Gearbox With Electric 24v DC Motor For Solar Tracking System

7 Inch Dual Axis Slew Drive Gearbox With Electric 24v DC Motor For Solar Tracking System

  • 7 Inch Dual Axis Slew Drive Gearbox With Electric 24v DC Motor For Solar Tracking System
  • 7 Inch Dual Axis Slew Drive Gearbox With Electric 24v DC Motor For Solar Tracking System
7 Inch Dual Axis Slew Drive Gearbox With Electric 24v DC Motor For Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo,QT Model: SDE7"
Gear Ratio: 57:1 Rated Output Torque: 2000 Nm
Holding Torque: 13500 Nm Tilting Torque: 7500 Nm
Efficiency: 40% Standard Color: RAL 9006
Axial Load: 34 KN Radial Load: 58 KN
High Light:

hydraulic slew motor

,

slewing gear

SDE Series Dual Axis Electric Slew Drive With 24V Dc Motor For Solar Tracking System



Introduction



Dual axis slewing drives are perfect for situations which need rotate both vertically and horizontally. Typical applications include dual axis solar trackers, satellite and radar dishes, machines which need moving 360 degrees at both directions.


Features

1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function

Performance Chart of SDE


Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency

Precision

(°)

Self-locking Weight (kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705


Electric Gear Motor


Motor Data Planetary Data
Rated Voltage 24VDC Ratio 398:1
Rated Current 1.3A Output Torque 43Nm
Rated Speed 800Rpm Output Speed 2Rpm
Protected Level IP55/65/66 Noise <60db

7 Inch Dual Axis Slew Drive Gearbox With Electric 24v DC Motor For Solar Tracking System 0

Glossary of Key Parameters

Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the qorque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.
Radial load: Load vertical to the axis of slewing bearing
Axial load: Load parallel to the axis of slewing bearing
Holding torque:It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque.
Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.

Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.

Contact Details
Changzhou Hangtuo Mechanical Co., Ltd

Contact Person: Jessie

Tel: +86 18800586965

Send your inquiry directly to us
Changzhou Hangtuo Mechanical Co., Ltd
NO.628, HONGMEI STREET, TIANNING DISTRICT, CHANGZHOU, JIANGSU. CHINA
Tel:86--18800586965
