Single Axis 0.1 Degree Backlash Slewing Ring Gear Reducer With Electric Motor

Brand Name: HangTuo
Model Number: VE3"
MOQ: 1 piece
Price: USD 120~504 / pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Material:
50Mn, 42CrMo
Model:
VE3"
Gear Ratio:
31:1
Efficiency:
40%
Color:
RAL 9006 Or As Requested
Application:
Solar Tracking Systems
Place Of Origin:
Changzhou, China
Driver:
24VDC Motor
Warranty:
5~10 Years
Certificate:
ISO9001, CE
Installation Site:
Open Field, Flat Roof
Feature:
Secure, Quick Installation, Long Life
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

solar slew drive

,

slewing drive for solar tracking system

Product Description



VE3 Single Axis 0.1 Degree Backlash Slewing Ring Gear Reducer With Electric Motor For Single Axis Trackers



The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.

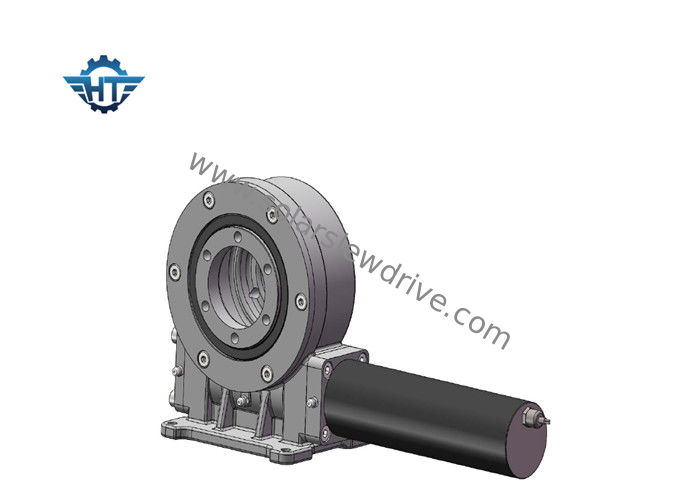

Single Axis 0.1 Degree Backlash Slewing Ring Gear Reducer With Electric Motor 0



Performance parameters of VE series



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244



Recommended slewing drive



Enclosed housing slewing drive SE1 SE3 SE5 SE7 SE9 SE12 SE14 SE21
Precise enclosed housing slewing drive ZE3 ZE5 ZE7 ZE9
Worm gear slewing drive WE1 WE3 WE5 WE7 WE9
Dual axis slewing drives SDE3 ZDE3 SDE5 ZDE5 SDE7 ZDE7
Vertical enclosed slewing Drive VE3 VE5 VE6 VE7 VE9 VE12



Our Services
There are more than 10 different sizes, starting from 3' size to 25" inch size, among them are 5", 7", 9" 12", 14", 17" , 19" and 21". They are both widely used in solar tracking systems (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.
