|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Price:||USD 280~504 / pc|
|Packaging Details:||plywood box|
|Delivery Time:||15~45 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||2000 pcs per month|
|Gear Ratio:||61:1||Rated Torque:||4300 Nm|
|Holding Torque:||27200 Nm||Tilting Torque:||16000 Nm|
|Efficiency:||40%||Square Output:||94*94 Mm|
slewing drive for solar tracking system,
solar tracker drive

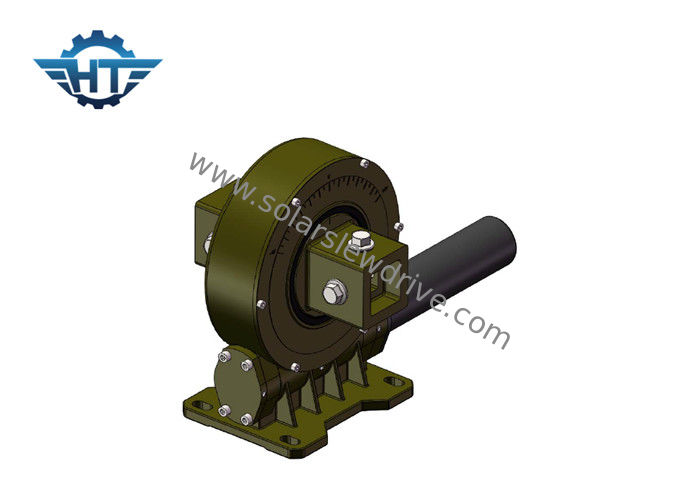

VE9 Inch Worm Gear Slew Drive With 94×94 MM Square Tube For Flat Single Axis Solar Tracking System
The 9 inch vertical slew drives could be with square tubes or flange output. The squaretube usually is 94×94 mm, and we also developed with 110×110 mm tube size which is used flat single axis solar tracking system. The size could be customized based on customers' special demands. It features high IP grade which could protect the drive from various environment conditions such as dust, water, sand and even water.
We are manufactured based on the standard which is required in the ISO9001 system. We also passed CE certifications. The slew drive has a long lifespan and it is designed for 30 years field using life time.
|Model||Ratio||Rated Output Torque(N.m)||Tilting Torque(N.m)||Holding Torque(N.m)||Axial Load(kN)||Radial Load(kN)||Efficiency||Precision(°)||Self-locking||Weight(kg)|
1. High backholding torque to improve the solar tracking system's safety
2. Hard stop inside in case the mulfunctioning of the software control system
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
6. Square tube output 110*110 mm or 94*94mm
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7 days; for batch orders: within 25 days.
