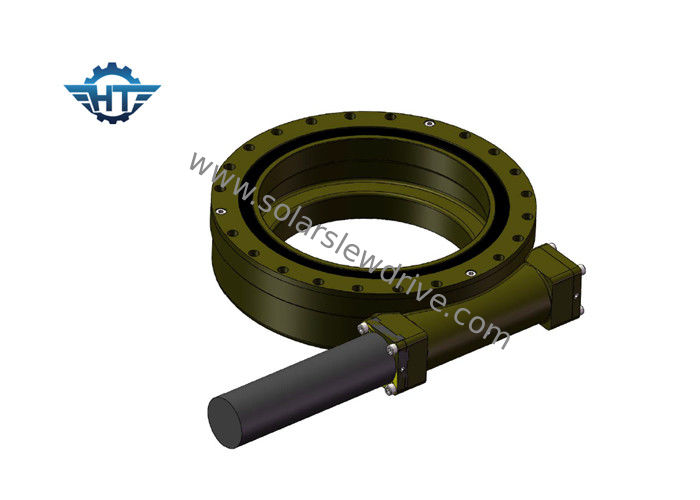

SE1 Envelop Worm Slew Drive Gearbox, IP66 And Small Backlash With Enclosed House For Solar Trackers
Description
The slewing drive features high precision to provide a large proportion of single-stage gearing. Bearings and gears are assembled into a small, self-contained, and ready-to-install case to optimize weight and performance. These highly adaptable products also feature robust shock resistance, long life performance, and smooth rotation, bearing protection and sealed drive options. As an experienced slew drive manufacturer, we have the capability to provide high quality slew drives.
The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis or in multiple axes together. Slewing ring drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.
Changzhou Hangtuo has more 10 experience on slewing drive technology. We will put make perfect products and provide customers with satisfactory application experience as our continuous goal. We are very glad to use our professional skills to provide customers with high-quality products, and hope that through continuous cooperation, enhance mutual understanding and communication, and achieve a win-win situation.
SE Series Technical Data
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 1" | 31:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9 |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14 |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23 |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Applications
The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
Packaging & Shipping
1. Filling with rust-proof oil
2. Packing with protective layers
3. Fixed in the plywood case, pallet, steel frame
