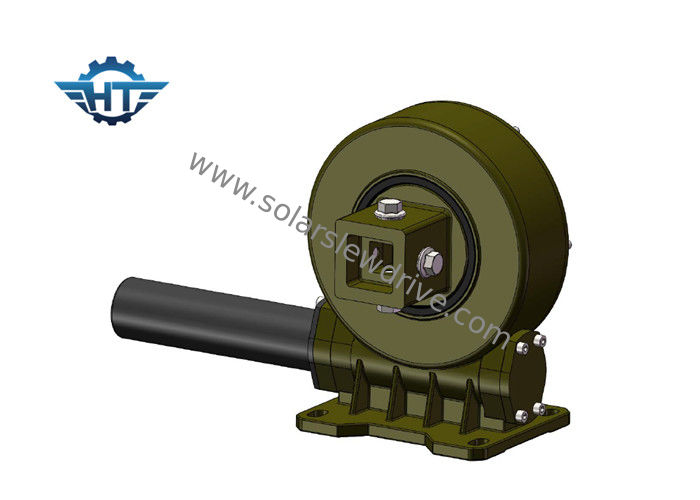

VE9 IP66 Vertical Slew Drive Gearbox With Square Output Tube For Solar Tracking System
Description
A slew worm drive system is a compactly constructed unit which consists of a slewing ring, base plate and worm. This unit brings the advantages of a slewing ring and a worm into one unit.
It is suitable for applications which demand slow rotation with a continuous or cyclical movement capable of handling combined loads. The product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system to equipment.
Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in varying equipment such as mobile assembly platforms, satellite system, hydraulic loading cranes on haulage vehicles, small marine cranes, extendable rotating ladders, in wheel units of large marine portal transporters.
Technical Data
| Model: | VE9 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 4300 N.m |
| Tilting Moment Torque | 16 K N.m | Holding Torque | 27 K N.m |
| Static Axial Rating | 60 KN | Static Radial Rating | 130 KN |
| Dynamic Axial Rating | 30 KN | Dynamic Radial Rating | 65 KN |
| Gear Ratio | 37:1 | Efficiency | 40% |
VE Slew Drive Technical Data
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28kg |
| 8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 kg |
Advantages
1. Rotation ±60°, hard stop/hard limit inside the drive incase of software controlling failure
2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
