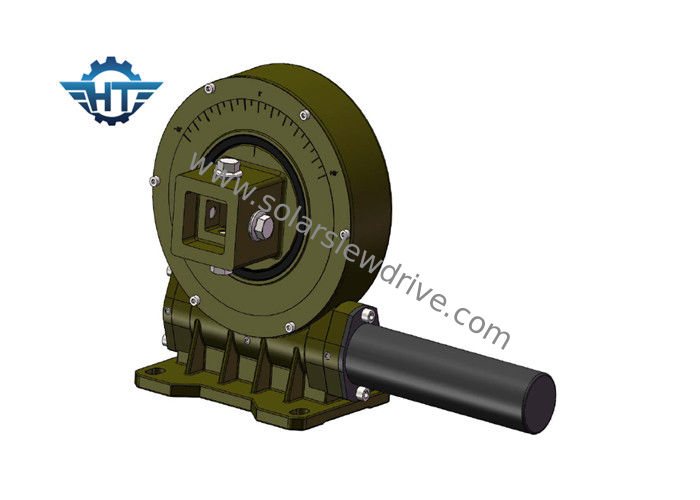

VE9 Vertical Worm Gear Small Slew Drive With 12V DC Gear Motor And Enclosed Housing

VE9 Vertical Worm Gear Small Slew Drive With 12V DC Gear Motor And Enclosed Housing

  • VE9 Vertical Worm Gear Small Slew Drive With 12V DC Gear Motor And Enclosed Housing
  • VE9 Vertical Worm Gear Small Slew Drive With 12V DC Gear Motor And Enclosed Housing
VE9 Vertical Worm Gear Small Slew Drive With 12V DC Gear Motor And Enclosed Housing
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Type: VE Slewing Drive Material: 42CrMo Or 50Mn
Warranty: 5~10 Years Size: 3 Inch To 25 Inch
Type Of Tooth: Helical Tooth Motor: AC Or DC Or Hydarulic
Color: Customer Required Application: Solar Tracker
High Light:

solar slew drive

,

slewing drive for solar tracking system





VE9 Vertical Worm Gear Slew Drive With 12V DC Gear Motor And Enclosed Housing For Outdoor Use



Description



Slew drive is a full-cycle rotary speed reduction drive mechanism with integrated drive power source. It is used as a drive follower and mechanism attachment.



Advantages



1. Modularity

Due to the high degree of integration of the rotary drive, the user does not have to purchase and process each piece of the components that make up the rotating device, and to a certain extent reduce the preparation process at the beginning of the product production, thereby greatly improving the labor productivity.

2. security

Worm gear drive with reverse self-locking characteristics, can achieve reverse self-locking, that can only be driven by the worm, and can not be driven by the worm gear. This feature allows the rotary drive can be widely used in lifting, aerial work and other equipment, while improving the host of scientific and technological content, but also greatly enhance the stability of the host operating and operating safety factor. Slew drive with the traditional rotary products, compared with the installation is simple, easy to maintain, to a greater extent, save space for installation.

3. Simplify the host design

Compared with the traditional gear drive, the worm gear drive can be relatively large reduction ratio, in some cases, the host can save the reducer parts, so as to reduce procurement costs for customers, but also greatly reduces the host failure rate.



Applications



Our products include slewing drives and related components, which are mainly applied in single or dual axis solar tracking systems, construction vehicles, port machinery, modular vehicles and small wind power systems.



Slewing drives/reducers are being chosen by customer from home and aboard for PV/CPV/CSP solar thermal tracking systems due to the combination of slewing ring with the hourglass worm shaft, which provides more tooth contact, increased drive torque and smoother rotation. There are different sizes available from 3 inch to 25 inch with more than 60 models to meet both regular and precise tracking requirements in PV, CPV, CSP and solar thermal power tracking fields.



Technical Data



 VE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Precision (degree) Precision IP Working Tep(℃) Self-locking Weight (kg)
3" 600 1800 1500 22 15 31:1 40% ≤0.10 66 -40~+120 Yes 12kg
5" 800 9200 5000 16 27 37:1 40% ≤0.10 66 -40~+120 Yes 18kg
7" 1750 13200 7000 34 58 57:1 40% ≤0.10 66 -40~+120 Yes 32kg
8" 2250 20400 11200 50 80 51:1 40% ≤0.10 66 -40~+120 Yes 28kg
9" 4300 30800 16000 60 130 61:1 40% ≤0.10 66 -40~+120 Yes 52kg
12" 5600 40560 25000 77 190 78:1 40% ≤0.10 66 -40~+120 Yes 65kg
14" 6750 44200 48000 110 230 85:1 40% ≤0.10 66 -40~+120 Yes 88 kg
17" 9460 53040 67000 142 390 102:1 40% ≤0.10 66 -40~+120 Yes 135 kg
21" 16000 65000 89000 337 640 125:1 40% ≤0.10 66 -40~+120 Yes 192 kg
25" 21450 89000 112000 476 950 150:1 40% ≤0.10 66 -40~+120 Yes 251 kg
