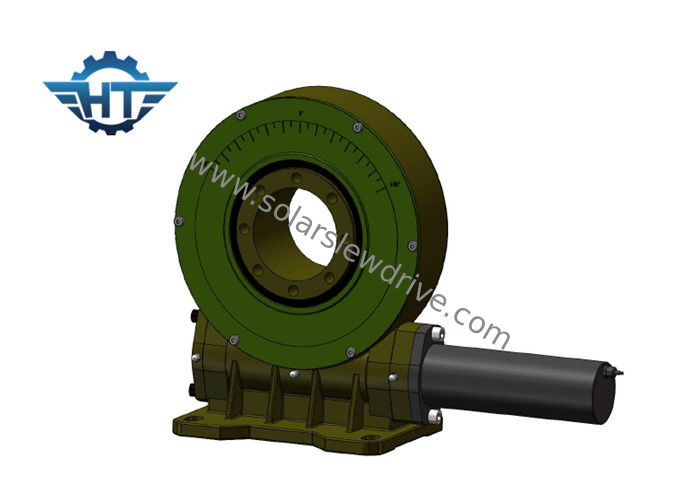

High Load Torque Worm Gearbox IP66 Enclosed Zero Backlash Slew Drive For Concentrated Solar Power System

High Load Torque Worm Gearbox IP66 Enclosed Zero Backlash Slew Drive For Concentrated Solar Power System

  • High Load Torque Worm Gearbox IP66 Enclosed Zero Backlash Slew Drive For Concentrated Solar Power System
  • High Load Torque Worm Gearbox IP66 Enclosed Zero Backlash Slew Drive For Concentrated Solar Power System
High Load Torque Worm Gearbox IP66 Enclosed Zero Backlash Slew Drive For Concentrated Solar Power System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Type: VE Slewing Drive Material: 42CrMo Or 50Mn
Warranty: 5~10 Years Size: 3 Inch To 25 Inch
Type Of Tooth: Helical Tooth Motor: AC Or DC Or Hydarulic
Color: Customer Required Application: Solar Tracker
High Light:

solar tracker drive

,

slewing drive for solar tracking system





High Load Torque Worm Gearbox, IP66 Enclosed Zero Backlash Slew Drives For Concentrated Solar Power System



Description



Slew drives are an all-in-one unit comprised of slew ring, gear, housing, and motor (electric or hydraulic) and it is designed for axial, radial, and moment loading. We developed high backlash worm gear slew drives specially for applications where high accuracy is needed.



Features



1. Hangtuo slew Drives are powered with hour glass (Double Enveloping) worm technology for increased load handling, efficiency and accuracy.

2. Manufacture a wide variety of drive styles, model sizes, performance ranges, sealing options, and mounting characteristics.

3. Standard model sizes from 75mm to 800mm in diameter.

4. Backlash, almost zero backlash

5. Self-locking



Multiple Options



1. Gear reduction ratio 31:1 to 150:1

2. Horizontal, vertical, or combination of multiple axis mounting

3. Single worm or double worm

4. Electric or Hydraulic motor option

5. Housing: Open or Closed

6. Customized input configurations

7. Custom designs per application requirements



High Load Torque Worm Gearbox IP66 Enclosed Zero Backlash Slew Drive For Concentrated Solar Power System 0



Technical Data



 VE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Precision (degree) Precision IP Working Tep(℃) Self-locking Weight (kg)
3" 600 1800 1500 22 15 31:1 40% ≤0.10 66 -40~+120 Yes 12kg
5" 800 9200 5000 16 27 37:1 40% ≤0.10 66 -40~+120 Yes 18kg
7" 1750 13200 7000 34 58 57:1 40% ≤0.10 66 -40~+120 Yes 32kg
8" 2250 20400 11200 50 80 51:1 40% ≤0.10 66 -40~+120 Yes 28kg
9" 4300 30800 16000 60 130 61:1 40% ≤0.10 66 -40~+120 Yes 52kg
12" 5600 40560 25000 77 190 78:1 40% ≤0.10 66 -40~+120 Yes 65kg
14" 6750 44200 48000 110 230 85:1 40% ≤0.10 66 -40~+120 Yes 88 kg
17" 9460 53040 67000 142 390 102:1 40% ≤0.10 66 -40~+120 Yes 135 kg
21" 16000 65000 89000 337 640 125:1 40% ≤0.10 66 -40~+120 Yes 192 kg
25" 21450 89000 112000 476 950 150:1 40% ≤0.10 66 -40~+120 Yes 251 kg
