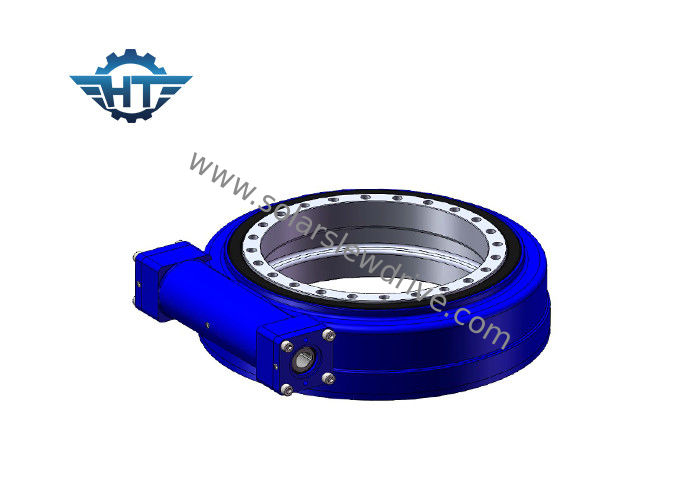

SE9 Inch Slewing Ring Drive With 24 VDC Stepper Motor And Encoders For Solar Plant

SE9 Inch Slewing Ring Drive With 24 VDC Stepper Motor And Encoders For Solar Plant

  • SE9 Inch Slewing Ring Drive With 24 VDC Stepper Motor And Encoders For Solar Plant
SE9 Inch Slewing Ring Drive With 24 VDC Stepper Motor And Encoders For Solar Plant
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 9 Inch Gear Ratio: 61:1
Efficiency: 40% Type: Horizontal Series
Application: Solar Energy OEM Service: Available
Place Of Origin: Changzhou, China Driver: 24vdc Motors
High Light:

worm drive gearbox


worm gear slewing ring




What is a Slewing Drive?

A slewing drive (or slew drive for short) is a complete, ready to install system that consists of a ball or roller slewing ring (bearing), worm, and completely enclosed housing. It can be customized with hydraulic or electric planetary gearboxes with selectable IP grade based on different applications and customers’ demand.


It has the features of corrosion protection, high load, and high precision.


Worm gear slewing is widely applied in the relatively rotary parts of machinery and solar energy field such as solar tracking system, rotary chassis of aerial working machinery, truck crane, rock drill, drilling machine, grasping wood machine, code molding machine.


Parameters of slewing drive


SE Model Performance Parameters
Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182


Changzhou hangtuo uses a double-envelope technology to produce a slewing drive with ring-wound worm technology as the most important means to maximize load and improve transmission efficiency and accuracy. When the worm is engaged with the slewing bearing, multi-tooth engagement can be achieved, and when the worm is engaged, only one-tooth engagement can be achieved. The increased tooth surface engagement of the 5 to 11 teeth thus greatly enhances the strength and power of the transmission. Our range of slew drive is available in several series and covers a wide range of models. The performance range and installation dimensions can meet the needs of different applications. At present, our products can be divided into 9 basic models, the diameter of the raceway ranges from 75mm to 800mm. The load range is from 6kNm to 220kNm, the torque output is from 200Nm to 63kNm, the turning torque is from 500Nm to 271kNm, and the transmission reduction ratio is from 30:1 to 156600:1. The installation method can be horizontal, vertical or multi-axis.


You can order a basic type (open gear) or a fully enclosed type. We also offer a two-axis slew drive (single rotary drive rotates simultaneously in both directions) and a single-shaft dual drive (two drive worms drive the same slewing bearing on a single shaft).

Typical slew drive applications include solar power plants, wind turbines, truck cranes, aerial work vehicles, utility equipment, hydraulic equipment, petroleum equipment, wheel steering equipment, excavators, and automatic lifting equipment. There are many other applications that have not been exhaustively listed, as the slewing drive is the best choice for applications that offer high loads and high torque on the same transmission.


We produce many different types of slew drives and offer many types of slew drives and drive components. Our slew drives can be self-locking or back-drive. The self-locking slew drive does not reverse when the reverse force is transmitted from the slewing ring to the worm, and there is no need to install a separate brake. Instead of self-locking, it can be driven in reverse. For hydraulic applications, we supply hydraulic motors to our customers. For electric equipment, we can supply gearboxes and various motors for our customers.
