Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE5 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | 5 Inch | Gear Ratio: | 37:1 |
|---|---|---|---|
| Efficiency: | 40% | Type: | SE Series |
| Application: | Solar Energy | OEM Service: | Available |
| Place Of Origin: | Changzhou, China | Driver: | 24 V Gear Motor |
| High Light: | worm gear slew drive,slewing ring gear |
||

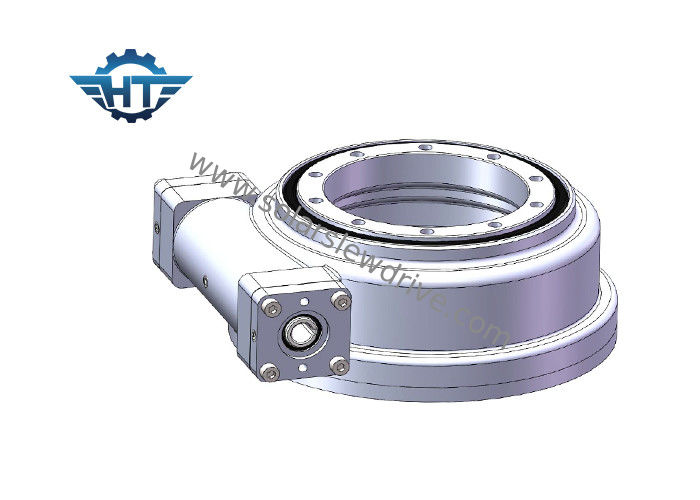

5 Inch Horizontal Type Slew Bearing Gearbox For Oblique Solar And Horizontal Single Axis Trackers
Description
For the core component adopts slew bearings, it can withstand axial force, radial force and tilting torque at the same time. The slew drive is easy to install, easy to maintain, and saves installation space to a greater extent. The product can be widely used in heavy-duty flat transport vehicles, container cranes, with car cranes, aerial vehicles, solar generator systems such as the day, such as construction machinery and new energy fields.
Parameters of Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Advantages
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
FAQ
1. Are you a trader or a manufacture?
We are an industry and trade integration business, our factory located in Changzhou City.
2. How about the payment terms?
We usually accept T/T or L/C. other terms also could be negotiated.
3. What is your minimum order?
It depends on what you are buying. Normally, our minimum order is 1pc.
4. What is your delivery time?
If there are any parts in stock , our delivery time is only 3-7 days by air express. If our standard model but not in stock, the delivery time is around 25 days,if non-standard model, the delivery time is 45~50 days.
5. What about Quality Control?
We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece carefully, monitoring every production process until packing is complete, to ensure product safety into container.
