Solar Tracker Slew Drive
Created with Pixso. Horizontal Solar Tracker Drive With Hardened Gear Tooth For Small Single And Dual Axis Solar Tracker

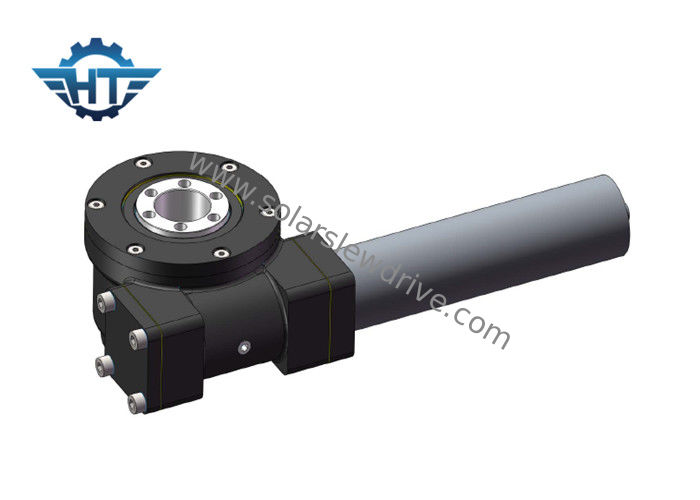

Horizontal Solar Tracker Drive With Hardened Gear Tooth For Small Single And Dual Axis Solar Tracker

Brand Name: HangTuo
Model Number: SE1
MOQ: 1 piece
Price: USD 280~504 / pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Place Of Origin:
Changzhou, China
Certification:
ISO, CE
Protect Feature:
Enclosed
Self-locking:
Yes
Type:
SE1 Slewing Drive
Material:
42CrMo Or 50Mn
Size:
3 Inch To 25 Inch
Application:
Solar Tracker
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

slewing drive for solar tracking system

,

solar tracker drive

Product Description





SE1 Horizontal Solar Tracker Drive With Hardened Gear Tooth For Small Single And Dual Axis Solar Tracker



Description



Slew drives are perfect for applications that require both load holding and rotational torque from the same gear box. The drives come with an hourglass worm technology, which increase the efficiency of the drives. The difference between normal and hourglass technology is that, in a conventional worm gearing system, only one tooth of the gear is in contact with the worm shaft, whereas in hourglass, it has multi-tooth contact.



Advantages



The structure is compact, the return clearance is small, the precision is high, the service life is very long, and the rated output torque can be made very large. But the price is slightly more expensive. Planetary reducers are generally used when high torque is required in a limited space, ie small volume and large torque, and its reliability and life are better than spur gear reducers. Spur gear reducers are used for lower current consumption, low noise and high efficiency low cost applications. Planetary reducers are characterized by small size, high output torque and high transmission efficiency, as long as they have these requirements.



Technical Data



Horizontal Solar Tracker Drive With Hardened Gear Tooth For Small Single And Dual Axis Solar Tracker 0



SE Model Performance Parameters



Model Rated Output Torque (N.m) TiltingTorque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency Precision (degree) IP Self-locking Weight (kg)
1" 400 1000 1800 22 12 32:1 40% ≤0.10 66 Yes 6
3" 600 1500 3000 30 16 31:1 40% ≤0.10 66 Yes 8
5" 800 6000 9200 68 27 37:1 40% ≤0.10 66 Yes 12
7" 2000 13500 13200 132 58 57:1 40% ≤0.10 66 Yes 21
9" 4400 45000 30800 340 130 61:1 40% ≤0.10 66 Yes 49
12" 5800 54400 40560 480 190 78:1 40% ≤0.10 66 Yes 61
14" 6550 68000 54200 680 230 85:1 40% ≤0.10 66 Yes 63
17" 9400 135600 65040 980 390 102:1 40% ≤0.10 66 Yes 105
21" 16000 203400 81000 1600 640 125:1 40% ≤0.10 66 Yes 149
25" 21000 271160 89000 2400 950 150:1 40% ≤0.10 66 Yes 204
