Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE3 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 150-200 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | SE3 | Description: | Single Axis Slew Drive |
|---|---|---|---|
| Application: | Construction Machinery | Tooth Surface: | Quenched |
| Certification: | ISO, CE | Protect Feature: | Enclosed IP66 |
| Color: | Customer Required | Weight: | 10 KG |
| High Light: | slewing drive for solar tracking system,solar tracker drive |
||

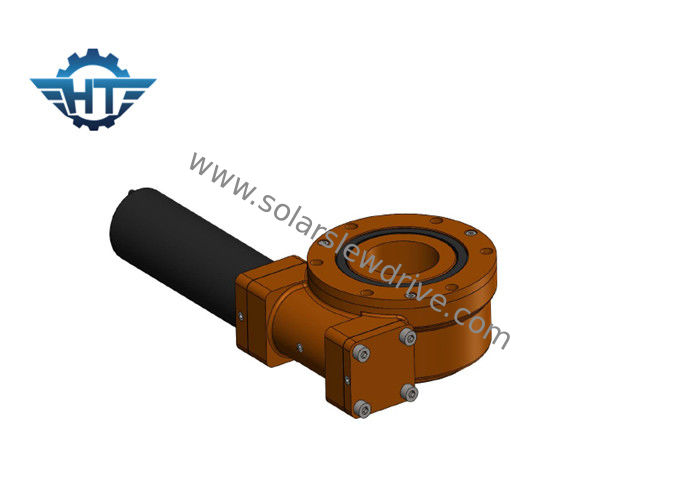

Turntable Heavy Duty Slewing Ring Drive Large Size For Construction Machinery And Cranes
Description
Slewing ring drive is composed of bearings, worm, base, house and other accessories. The key important part slew bearing is with compositive large loads carrying capability, which can accommodate axial load radial load and tilting torque simultaneously. These bearings normally have mounting holes, inside gears or outside gears lubricating holes and sealing.
Features
1. Compact configuration
2. Light weight
3. Good rigidity
4. Smoothly running
5. High precision
6. Reliable safety
Applications
Applications of the bearings are found in the industries such as engineering/project metallurgy, mining, oil, chemistry, light industry, aviation, harbor/quay, vessels, military industry, instruments and meters etc.
Technical Parameters
Model |
Rated Output Torque (N.m) |
TiltingTorque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (Degree) | IP | Self-Locking | Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | Yes | 204 |
