Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | SDE Slew Drives | Certification: | ISO, CE |
|---|---|---|---|
| Protect: | Enclosed | Place Of Origin: | Changzhou, China |
| Material: | 42CrMo Or 50Mn | Warranty: | 5~10 Years |
| Size: | 3 Inch To 25 Inch | Color: | Customer Required |
| High Light: | slewing drive for solar tracking system,slew drive for solar tracker |
||

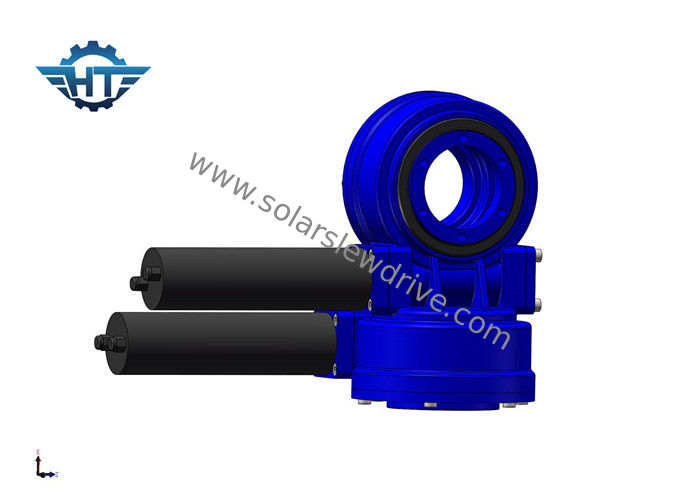

IP66 Helical Tooth Slew Ring Dual Axis Slew Drive With Stepper Motor For Dual Axis Solar Tracker
Description
The slew drives come with an IP66 rated protection grade, which protects the drive from environmental conditions as well as dirt, sand, dust and even water. The drive is designed in such a way that huge loads can be carried with compact form. The gears used in the assembly could be hardened, so that they provide maximum durability and longer life.
SDE Model Performance Parameters
| Model | Rated Output Torque (N.m) | TiltingTorque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (degree) | IP | Self-locking | Weight (kg) |
| 3" | 600 | 1500 | 5800 | 10 | 15 | 31:1 | 40% | ≤0.10 | 66 | Yes | 25kg |
| 5" | 800 | 6000 | 9200 | 16 | 27 | 37:1 | 40% | ≤0.10 | 66 | Yes | 34kg |
| 7" | 2000 | 7500 | 13200 | 34 | 58 | 57:1 | 40% | ≤0.10 | 66 | Yes | 56kg |
| 9" | 4300 | 16000 | 27200 | 60 | 130 | 61:1 | 40% | ≤0.10 | 66 | Yes | 92kg |
| 12" | 5800 | 25000 | 40560 | 77 | 190 | 78:1 | 40% | ≤0.10 | 66 | Yes | 160 kg |
| 14" | 6750 | 48000 | 44200 | 110 | 230 | 85:1 | 40% | ≤0.10 | 66 | Yes | 224kg |
| 17" | 9460 | 67000 | 53040 | 142 | 390 | 102:1 | 40% | ≤0.10 | 66 | Yes | 320kg |
| 21" | 16000 | 89000 | 65000 | 337 | 640 | 125:1 | 40% | ≤0.10 | 66 | Yes | 492kg |
| 25" | 21450 | 112000 | 89000 | 476 | 950 | 150:1 | 40% | ≤0.10 | 66 | Yes | 705 kg |
Stepper Motor
Revealing the six benefits of stepper motors with planetary gearbox
People know that stepper motors have been widely used, it can control the number of pulses to control the amount of angular displacement, so as to achieve the purpose of accurate positioning, but do you know the benefits of stepper motor? Here are some benefits:
1. The angle of the motor rotation is proportional to the number of pulses.
2. When the motor stops, it has the maximum torque (when the winding is excitation).
3. Excellent start-stop and reverse response.
4. Due to the absence of brushes, high reliability, so the life of the motor depends only on the life of the bearing.
5. Only the load directly connected to the motor shaft can also be very low-speed synchronous rotation.
6. Because the speed is proportional to the pulse frequency, so there is a relatively wide speed range.
