Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE1 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1100 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Type: | SE1 Slewing Drive | Application: | Solar Trackers |
|---|---|---|---|
| Protect Feature: | Enclosed IP66 | Place Of Origin: | Changzhou, China |
| Material: | 42CrMo Or 50Mn | Warranty: | 5~10 Years |
| Size: | 3 Inch To 25 Inch | Weight: | 6 Kg |
| High Light: | slewing drive for solar tracking system,slew drive for solar tracker |
||

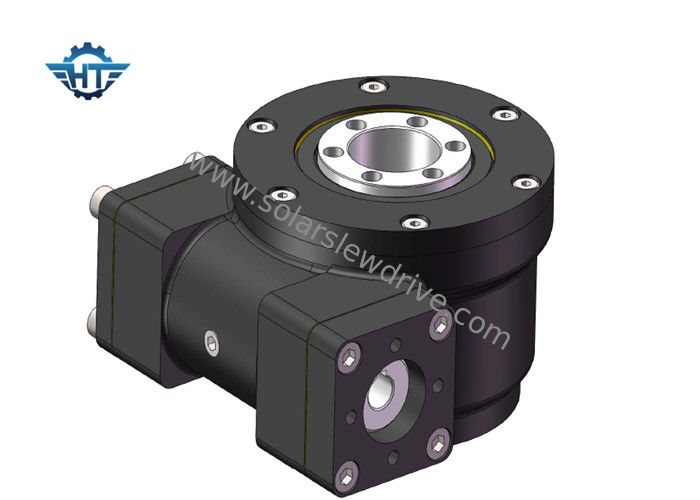

SE1 IP66 Enclosed Slew Ring Drive, Single Axis With 12VDC Motor For Single Tracking System
Description
Hourglass worm technology provides more tooth contact; higher torque provide an economical and compact solution with low maintenance costs; slewing gear and raceway harden processing technology increase the slew drive lifetime; all slewing mechanism components are rigorously tested and have good quality assurance; customized design is available.
Types: Single axis slew drive, dual axis slew drive, open-housing slewing drive, enclosed slewing drive, vertically-mounted slewing drive
Technical Data
| SE Model Performance Parameters | |||||||||||
| Model | Rated Output Torque (N.m) | TiltingTorque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (degree) | IP | Self-locking | Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.10 | 66 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.10 | 66 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.10 | 66 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.10 | 66 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.10 | 66 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.10 | 66 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.10 | 66 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.10 | 66 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.10 | 66 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.10 | 66 | Yes | 204 |
Gear Motor
What is DC Gear Motor?
DC Gear motor is also called DC geared motor, geared DC motor and gearhead motor or gearbox motor. It consists of an electric DC motor and a gearbox; these gearboxes are used to reduce the DC motor speed, while increase the DC motor torque. Therefore could be used in applications which need lower speed and higher torque from gear motor.
What could these geared motor used for
They are playing an important role as a driver in the following applications:
1. Solar power energy
2. Home appliances
3. Robotics
4. Automotive
5. Torque transmission
| Optional | 60mm, 80mm, 90mm, 120mm, 160mm |
| Rated output torque | 8.5nm-680nm |
| Gear ratio Single-stage | 3, 4, 5, 7, 10 |
| Gear ratio Double-stage | 12, 16, 20, 25, 28, 35, 40, 50, 70 |
| Gear ratio Three-stage | 64, 80, 100, 125, 140, 175, 200, 250, 350, 400, 500, 700, 1000 |
| Return gap | 12arc-min~ 18arc-min |
