Solar Tracker Slew Drive
Created with Pixso. SE14 High Tilting Torque Slew Ring Drive Attached With AC Motor For Construction Machinery

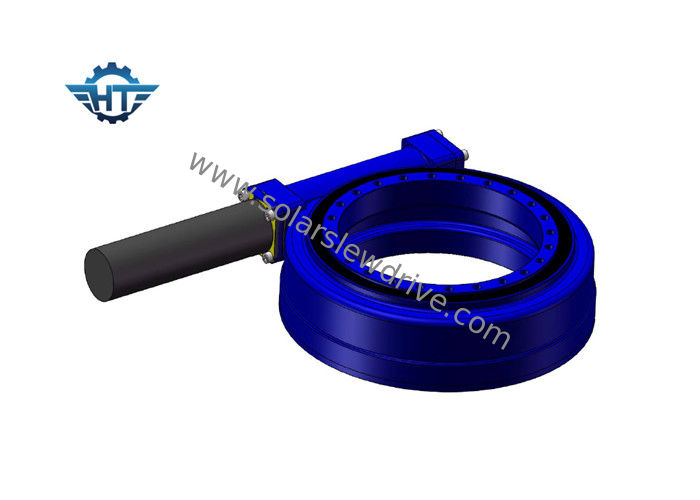

SE14 High Tilting Torque Slew Ring Drive Attached With AC Motor For Construction Machinery

Brand Name: HangTuo
Model Number: SE14
MOQ: 1 piece
Price: USD 100~1100/ pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Type:
SE14 Slewing Drive
Material:
42CrMo Or 50Mn
Warranty:
5~10 Years
Size:
3 Inch To 25 Inch
Application:
Industrial, Solar Tracker
Color:
Customer Required
Installation Site:
Open Field
Feature:
IP66
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

slewing drive for solar tracking system

,

solar tracker drive

Product Description

SE14 High Tilting Torque Slew Ring Drive Attached With AC Motor For Construction MachineryNEMA 34 enclosed stepper motor



Description



A: Bearing inner ring+ball+bearing outer ring = BEARING

B: worm+wormwheel = Worm and wormwheel structure

If adding gear to the outer ring of the bearing, then A and B become a slew drive.

Maintain advantages: large torque, good sealing, high bearing force of the end cover.

It can be matched with AC motor, DC motor, synchronous motor, brushless motor. There are also other motors could be matched, no matter what motors we choose, basically we need to look at some parameters: 1. Rated power/torque during normal operation 2. Normal power/ torque during a stable state; 3. Tracking accuracy; 4. adapt to temperature environment; 5.IP grade, waterproof, dustproof; 6. Economic reference; 7. service life; 8. Tracking speed, etc.



Tracker, tracker, tracker, why?

Because of sunrise and sunset…

Wrong – the sun doesn’t rise and set.

But it appears to rise and set because of the Earth’s rotation on its axis.

So solar trackers are counteracting Earth’s rotation.



Techical Data & Dimensions



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



SE14 High Tilting Torque Slew Ring Drive Attached With AC Motor For Construction Machinery 0
