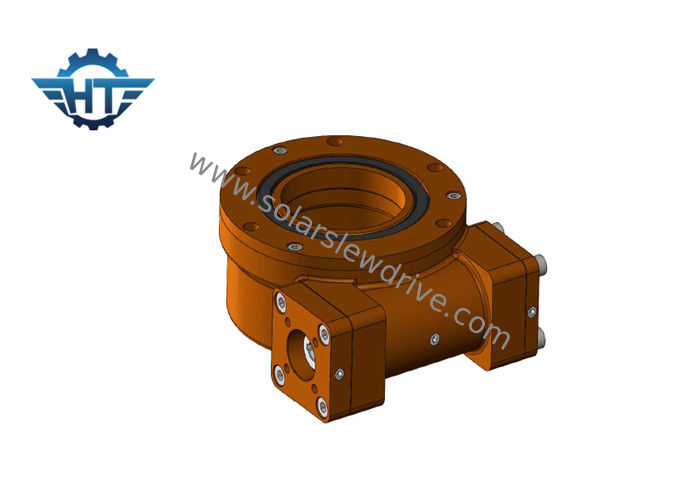

SE VE SDE Worm Gear Slew Drive Use In Solar Tracking System To Increase Electricity Profitability

SE VE SDE Worm Gear Slew Drive Use In Solar Tracking System To Increase Electricity Profitability

  • SE VE SDE Worm Gear Slew Drive Use In Solar Tracking System To Increase Electricity Profitability
  • SE VE SDE Worm Gear Slew Drive Use In Solar Tracking System To Increase Electricity Profitability
SE VE SDE Worm Gear Slew Drive Use In Solar Tracking System To Increase Electricity Profitability
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE, VE, SDE
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1100/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Type: Slewing Drive Material: 42CrMo Or 50Mn
Warranty: 3~10 Years Size: 3 Inch To 25 Inch
Application: Industrial, Solar Tracker Color: Customer Required
Motor: AC Or DC Or Hydarulic Installation Site: Open Field
Feature: Secure Protection: IP66
High Light:

slewing drive for solar tracking system

,

slew drive for solar tracker

SE, VE, SDE Worm Gear Slew Drive Used In Solar Tracking System To Increase Profitability





Description



Type of slew drive solar tracking system

1) Optimal inclination fixed

At low latitudes, the increase in electricity generation is minimal due to the lower optimal inclination (as in 8°, almost no increase); At high latitudes, the optimum inclination is large and the amount of electricity generated is significantly higher (for example, by about 25% at 50°)

2) Flat single axis

It track the change of incident angle within a day of the sun, and its rate of increase in electricity generation at low latitudes is significantly better than that of high latitudes. It is generally believed that flat single axis tracking is more suitable for the use of the latitudes less than 30 °.

3) Oblique single axis

It is more suitable for high latitudes.

4) dual axis tracking

This approach is clearly the highest in the increase in electricity generation due to the tracking of changes in the incident angle of the sun within a day and within a year.

5) Fixed adjustable

This type is based on the change of the angle of incidence within a year of the sun to adjust the inclination of the bracket, thus achieving an increase in power generation

The most fundamental difference between the different mounting methods is the difference in the power generation they bring. Of course, there will be differences in initial investment and operational maintenance costs.

Planetary reducers are ideal for applications requiring high torque in a small package and an output shaft with coaxial alignment

SE VE SDE Worm Gear Slew Drive Use In Solar Tracking System To Increase Electricity Profitability 0



Technical Data



VE Model Performance Parameters
Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Precision (degree) Precision IP Self-locking Weight(kg)
3" 600 1800 1500 22 15 31:1 40% ≤0.10 66 Yes 12kg
5" 800 9200 5000 16 27 37:1 40% ≤0.10 66 Yes 18kg
7" 1750 13200 7000 34 58 57:1 40% ≤0.10 66 Yes 32kg
8" 2250 20400 11200 50 80 51:1 40% ≤0.10 66 Yes 28kg
9" 4300 30800 16000 60 130 61:1 40% ≤0.10 66 Yes 52kg
12" 5600 40560 25000 77 190 78:1 40% ≤0.10 66 Yes 65kg
14" 6750 44200 48000 110 230 85:1 40% ≤0.10 66 Yes 88 kg
17" 9460 53040 67000 142 390 102:1 40% ≤0.10 66 Yes 135 kg
21" 16000 65000 89000 337 640 125:1 40% ≤0.10 66 Yes 192 kg
25" 21450 89000 112000 476 950 150:1 40% ≤0.10 66 Yes 251 kg





SDE Model Performance Parameters
Model Rated Output Torque (N.m) TiltingTorque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency Precision (degree) IP Self-locking Weight (kg)
3" 600 1500 5800 10 15 31:1 40% ≤0.10 66 Yes 25kg
5" 800 6000 9200 16 27 37:1 40% ≤0.10 66 Yes 34kg
7" 2000 7500 13200 34 58 57:1 40% ≤0.10 66 Yes 56kg
9" 4300 16000 27200 60 130 61:1 40% ≤0.10 66 Yes 92kg
12" 5800 25000 40560 77 190 78:1 40% ≤0.10 66 Yes 160 kg
14" 6750 48000 44200 110 230 85:1 40% ≤0.10 66 Yes 224kg
17" 9460 67000 53040 142 390 102:1 40% ≤0.10 66 Yes 320kg
21" 16000 89000 65000 337 640 125:1 40% ≤0.10 66 Yes 492kg
25" 21450 112000 89000 476 950 150:1 40% ≤0.10 66 Yes 705 kg





SE Model Performance Parameters
Model Rated Output Torque (N.m) TiltingTorque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Ratio Efficiency Precision (degree) IP Self-locking Weight (kg)
1" 400 1000 1800 22 12 32:1 40% ≤0.10 66 Yes 6
3" 600 1500 3000 30 16 31:1 40% ≤0.10 66 Yes 8
5" 800 6000 9200 68 27 37:1 40% ≤0.10 66 Yes 12
7" 2000 13500 13200 132 58 57:1 40% ≤0.10 66 Yes 21
9" 4400 45000 30800 340 130 61:1 40% ≤0.10 66 Yes 49
12" 5800 54400 40560 480 190 78:1 40% ≤0.10 66 Yes 61
14" 6550 68000 54200 680 230 85:1 40% ≤0.10 66 Yes 63
17" 9400 135600 65040 980 390 102:1 40% ≤0.10 66 Yes 105
21" 16000 203400 81000 1600 640 125:1 40% ≤0.10 66 Yes 149
25" 21000 271160 89000 2400 950 150:1 40% ≤0.10 66 Yes

204
