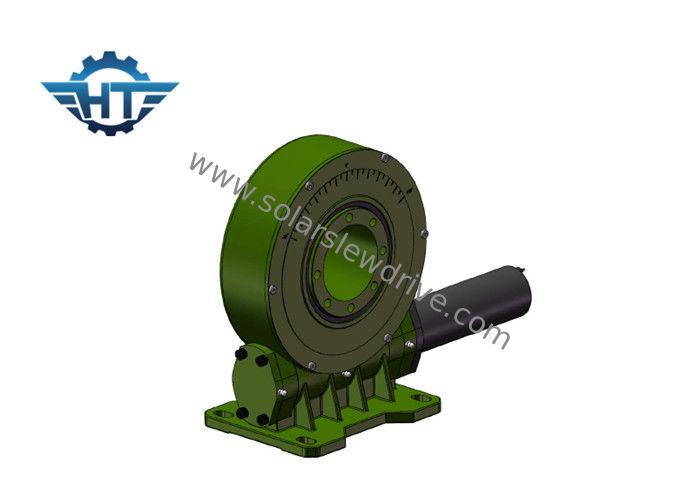

VE9 Single Axis Worm Gear Slew Drives With Large Transmission Ration For PV Trackers
Description
Hangtuo’s slewing drives employ precision motion technology that provides a large ratio in a single stage of gearing. The bearing and gears are assembled into a low profile, self-retaining, and ready-to-install housing optimized for weight versus performance. These highly-adaptable products also feature strong shock resistance, long life performance, smooth rotation, bearing protection, and sealed drive options.
We have the capability to provide custom solutions for specific applications.
Applications
Our products include slewing drives and related components, which are mainly applied in single or dual axis solar tracking systems, construction vehicles, port machinery, modular vehicles and small wind power systems.
Slewing drives/reducers are being chosen by customer from home and aboard for PV/CPV/CSP solar thermal tracking systems due to the combination of slewing ring with the hourglass worm shaft, which provides more tooth contact, increased drive torque and smoother rotation. There are different sizes available from 3 inch to 25 inch with more than 60 models to meet both regular and precise tracking requirements in PV, CPV, CSP and solar thermal power tracking fields.
Technical Data
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Precision (degree) | Precision | IP | Working Tep(℃) | Self-locking | Weight (kg) |
| 3" | 600 | 1800 | 1500 | 22 | 15 | 31:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 12kg |
| 5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 18kg |
| 7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 32kg |
| 8" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 28kg |
| 9" | 4300 | 30800 | 16000 | 60 | 130 | 61:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 52kg |
| 12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 65kg |
| 14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 88 kg |
| 17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 135 kg |
| 21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 192 kg |
| 25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | 40% | ≤0.10 | 66 | -40～+120 | Yes | 251 kg |
