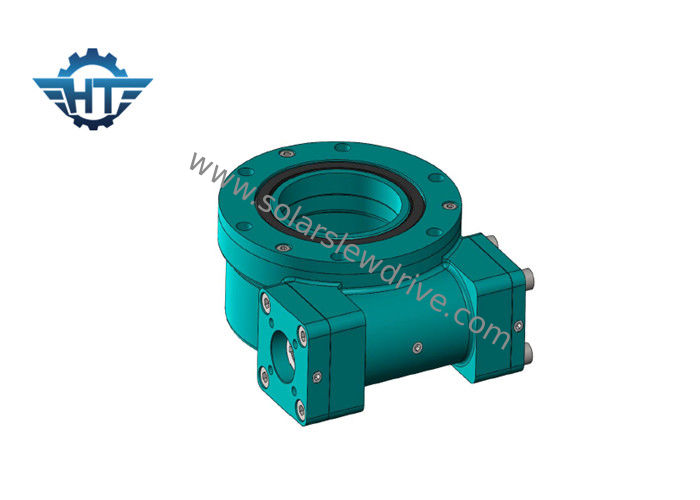

VE, SE, SDE Slew Drive Solar Tracker For Single Axis And Dual Axis Solar Power System
Description
1. Tilting Moment Torque: Torque is the load multiplied by the distance between the position of load and the center of slewing gear.
If the torque generated by load and distance is greater than the rated tilting moment torque, the slewing drive will be overturned.
2. Holding Torque : It is the reverse torque.
When the drive is rotating reversely, and parts are not damaged, the maximum torque achieved is called Holding Torque.
3. Axial Load : Load parallel to the Axis of slewing gear.
4. Radial Load : Load vertical to the Axis of slewing gear.
5. Self-locking : When loaded, the slewing drive can not reverse rotation and thus called self-locking.
Technical Data
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Effeciency | Precision (degree) | IP | Working Temp.(℃) | Self-locking | Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 28:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 8 |
| 5" | 800 | 6000 | 4700 | 68 | 27 | 37:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 7100 | 132 | 58 | 57:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes |
204
|
How Planetary Gear Motor Work
The planetary motor design displaces the load over multiple planetary gears allowing it to better handle heavier loads than other motor styles. The planetary gears are synchronized allowing them to deliver consistent torque, providing a greater output capacity overall. The design of planetary gears is very efficient at retaining lubricant allowing these small motors to operate at higher speeds. For this reason, planetary gear motors perform best when high torque is needed.
Advantages
1. OEM WELCOME
Support customized products OEM
2. QUALITY GUARATEE
Professional technical support, one year or 1000 hours warranty
3. FAST AND TIMELY DELIVERY
Usually 10-15 days for goods production
Technical Data
| Type | Voltage DC.(V) | No load | Rated | Max torque(Nm) | ||||
| Current (A) | Speed(rpm) | Motor speed (rpm) | Current (A) | Speed(r/min) | Torque(Nm) | |||
| ZYT09RC+ | 24 | 0.8 (MAX) | 2.6 | 1100 | 10.5(MAX) | 2.0 | 500 | 750 |
Dimensions
