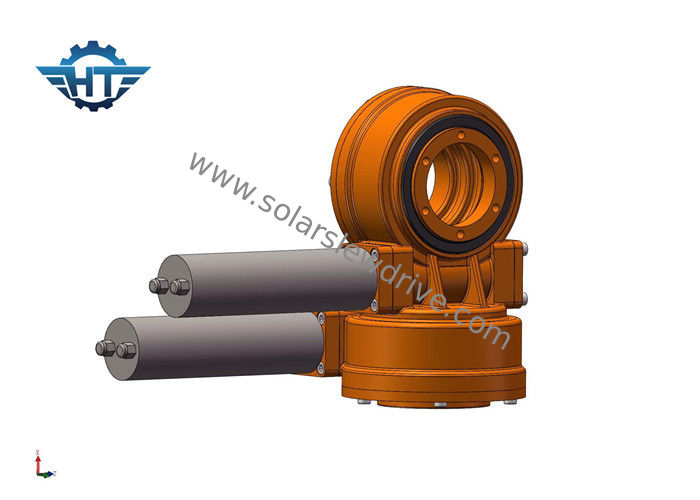

Small Dual Axis Solar Tracker Slew Drive With Double Envelope Worm And Helical Gear For Solar
Description
The dual axis slew drive is applied in dual axis solar tracking system which includes a moving platform, a fixed platform, a serial chain, a parallel chain and a driving device. The moving platform is supported by the serial chain and driven by the parallel chain, forming a parallel tracking mechanism. The driving device is configured to drive the parallel chain to motion so as to drive the moving platform to rotate around vertical and horizontal axes. The dual axis solar tracker of the present disclosure has a larger workspace, a better tracking performance and advantages of high rigidity, low energy consumption, small driving torque and low inertia, etc.
Dimensions
Technical Data
Key Advantages
Keep solar panels towards the sun at any time, allowing sunlight to shine vertically and horizontally at any time.
DC Planetary Gear Motor
1. Diameter of motor: 22mm, 32mm, 42mm, 52mm, 60mm, 80mm, 90mm, 105mm, 120mm
2. Power: 10w to 900W
3. Voltage: 24V, 36V, 48V, 100V, 110V, 220V, 230v
4. Speed ratio: 3.7-307.5
5. Optional:
a. Gear box
b. speed controller
c. encoder
d. power supply
6. High dependability and reliability
Dimensions
Plug Definition
| Plug hole | 1 | 2 | 3 | 4 |
| Signal wire | U-yellow | W-blue | Hv-thin green | Hu-thin yellow |
| Plug hole | 5 | 6 | 7 | 8 |
| Signal wire | V-green | GND-thin black | Hw-thin blue | Voc-thin red |
