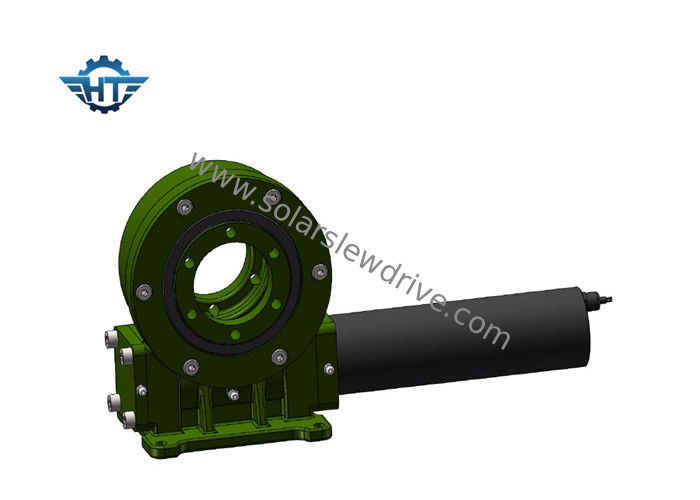

Vertical Single Axis Small Slew Drive, Double Envelope Worm For Tiny Solar Trackers
Description
The Slewing Drive can be used for any occasion where the need for full-cycle rotation and variable speed requirements. When the need for larger torque power transmission, the higher accuracy of the motion transmission or the compact structure of the body requires a higher mechanism selection, the rotary drive is the best solution. Enclosed dual axis slewing drive can realize the movement in two different directions, vertically and horizontally. Usually apply to the dual axis solar tracking systems or some machinery equipment with similar working condition.
Vertical Type worm gear Small Slewing Drive
VE worm gear means vertical installation slewing drive; mainly apply to the high working condition requirement for dust proof, rain-proof and anti-corrosion occasion. Protection grade IP66, precise 0.1°.
It has the advantage of saving equipment space, maximum load capacity, compact design, and extensive service life and reduced maintenance costs.
Performance Data
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Dimensions
Application
Slewing drive is a perfect product for the application which requires rotational torque strength.
Slew Drive For Solar: it is designed in solar photovoltaic panel rotation and improves power generation efficiency. Single axis & dual axis solar tracking solutions are available.
For wind generators: Slewing drives are used to rotate the pedestal in wind turbines
For Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, dock crane, timber grab
For Industry Market: Automation/assembly line, robotic arm
For Satellite: slew drive can be used for space communications and global positioning systems in satellite dish
