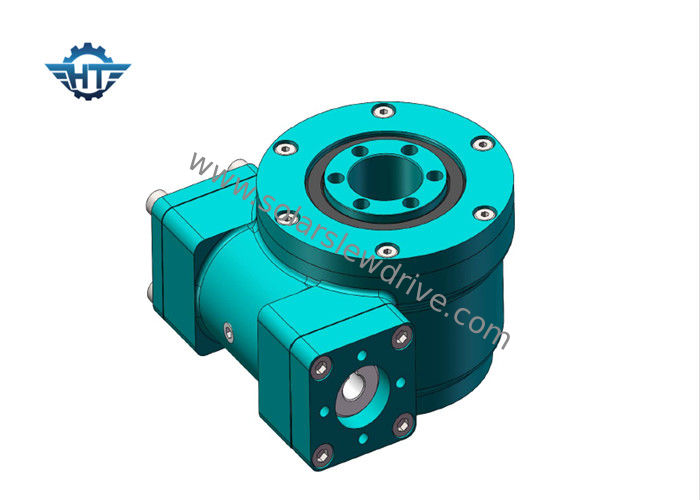

Small Slewing Bearing SE1 Slewing Ring Drive Manufacturers, 50mn, 42crmo Material For Solar Trackers
Description
The small slewing bearing device is usually composed of a worm, a slewing ring, a housing, a motor, and the like. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and tilting moments. Compared with traditional slew drive products, our slew drive is easy to install, easy to maintain, and saves installation space. The product can be widely used in construction machinery and new energy fields such as heavy-duty flatbed trucks, container cranes, truck-mounted cranes, aerial work vehicles, and solar power generation systems.
Heat Treatment Of Small Slewing Drive
Raceway heat treatment: The raceways of the slewing bearing are surface-inductively quenched, and the quenching hardness is ensured at HRC 55-62, which can achieve sufficient depth of hardened layer.
Gear heat treatment: Due to the need to transmit force, one of the slewing rings usually has teeth. The heat treatment state of the gear is generally normalized or tempered. The tooth surface can also be quenched according to the user's requirements. The quenching hardness is between 50 and 60 HRC and sufficient depth can be guaranteed. Gear quenching can be divided into full tooth quenching and single tooth induction hardening depending on the application. Single-tooth induction hardening can be divided into tooth surface root quenching and tooth surface quenching.
Technical Data
| SE1 Slew Drive | Motor Data | ||
| Rated Torque | 384 N.m | Rated Voltage | 24 VDC |
| Rated Speed | 0.06 RPM | Rated Current | <8 A |
| Max Output | Torque(3sec.) 460 N.m | Output Power | 25 W |
| Ratio | 32:1 | Rated Speed | 2 RPM |
| Temperature | -30℃~80℃ | Wire Length | 1 METER |
Dimensions
Technical Data of SE Series Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Heat treatment of small slewing bearing Raceway heat treatment: The raceways of the slewing bearing are surface-inductively quenched, and the quenching hardness is ensured at HRC 55-62, which can achieve sufficient depth of hardened layer.
