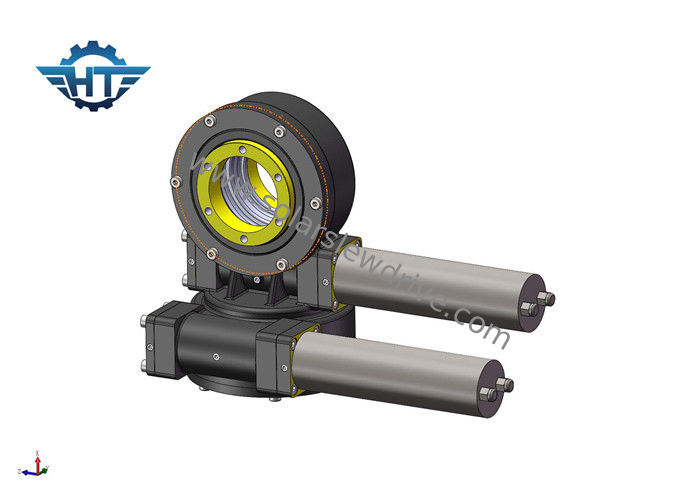

SDE3 Dual Axis Worm Gear Slew Drive, High Precision For Concentrated Heat Absorber

SDE3 Dual Axis Worm Gear Slew Drive, High Precision For Concentrated Heat Absorber

  • SDE3 Dual Axis Worm Gear Slew Drive, High Precision For Concentrated Heat Absorber
  • SDE3 Dual Axis Worm Gear Slew Drive, High Precision For Concentrated Heat Absorber
SDE3 Dual Axis Worm Gear Slew Drive, High Precision For Concentrated Heat Absorber
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE3
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Place Of Origin: Changzhou, China (Mainland) Power Supply: 24VDC
Hall Sensors: No Type Of Motor: Planetary Brushed Dc Motor
Feature: Totally Enclosed Material: 42CrMo Or 50Mn
High Light:

slewing drive for solar tracking system

,

solar tracker drive

SDE3 Dual Axis Worm Gear Slew Drive With High Precision For Concentrated Solar Power Station



Description



How to choose a transmission device for tower photothermal power generation system



The transmission device is important to the efficiency of Tower power station



In tower photothermal power station, tens of thousands of mirrors gather solar radiation on the heat absorber at the end of the heat-absorbing tower in order to collect high temperatures and gather heat. In order to ensure continuous and stable collection of heat, the mirror should always track the position of the sun, through the transmission device in the horizontal azimuth and elevation direction of movement (double axis).

The most common transmission device is tower CSP-slew drive



SDE3 Dual Axis Worm Gear Slew Drive, High Precision For Concentrated Heat Absorber 0



The slew drive is usually driven by a motor to drive the rotation of the mirror in the direction of the two axes. As a precision machine, the application of slew drive in photothermal power generation industry needs to control the tracking accuracy within 1mrad. Double envelope structure worm wheel and tooth surface meshing area is large, transmission accuracy is higher, impact resistance is strong, its low wear rate can ensure long-term use under the conditions of precision and life, more suitable for Photothermal power station in the northwest of the harsh environment.



Technical Data



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Motor



24V brushed DC Motor



Specification:

Voltage: 24VDC

Optional voltage: 12V, 48V

No load current: 0.6A (max)

No load output speed: 3.2 rpm

No load speed: 1300 rpm



Rated Speed: 2 rpm

Rated Torque: 43 Nm

Max Torque: 48 Nm

Rated Current: 1.8A (max)

IP Class: IP55

Weight: 2000 g



Dimensions

SDE3 Dual Axis Worm Gear Slew Drive, High Precision For Concentrated Heat Absorber 1

Shaft: 12mm



Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.
