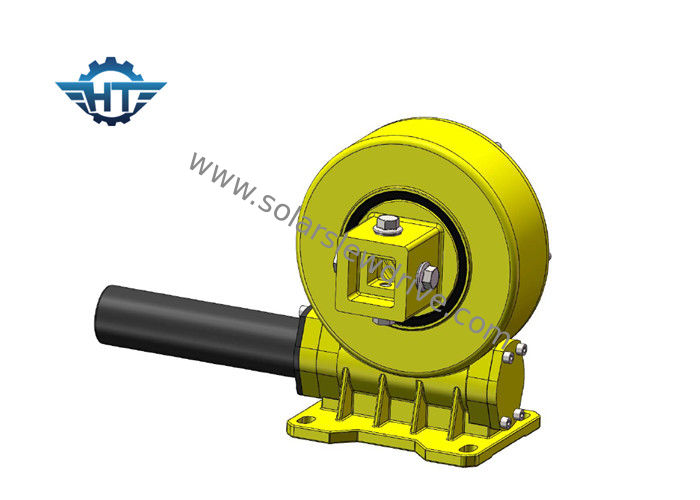

Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System

Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System

  • Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System
  • Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System
Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Type: Slewing Drive Place Of Origin: Changzhou, China (Mainland)
Motor: Brushless DC Motor Feature: Totally Enclosed
Material: 42CrMo Or 50Mn Warranty: 5~10 Years
Size: 3 Inch To 25 Inch Application: Solar Power System
High Light:

slewing drive for solar tracking system

,

solar tracker drive

Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System



Description



Single axis slew drive used in flat single axis tracking system, which bracket is a north-south arrangement, east-west tracking system. According to the astronomical algorithm, the slew drive driven by motor will bear high torque to drive the whole system, so that the system can track the azimuth of the sun, as far as possible to improve the sun on the surface of the photovoltaic module irradiation, and thus increase the power generation.



Installing a solar tracking system to keep solar panels track the sun at all times can effectively improve the efficiency of solar energy, and when single axis trackers are installed in highly irradiated areas, increased energy production means that power stations can generate higher return on investment.



This is mainly based on the design principle of the tracking system, due to the impact of the rotation of the earth, for a fixed location on the Earth, the sun cycle throughout the year, its illumination angle is also constantly changing. The solar tracking system is installed to keep solar panels up to track the sun and increase the amount of solar radiation received by photovoltaic arrays, thereby increasing the overall capacity of solar photovoltaic power generation systems.



Slew Drive Technical Data



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System 0



Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System 1



Motor Data



Rated Voltage V/DC: 24vdc

No-load speed RPM: 1200±10%

No-load current A: <0.1 A

Rated Torque N.M: 0.12

Speed RPM: 800±10%

Load current A:<1A

Rated power W:<10W



Gear output parameter:

Speed ratio: 399:1

Rated output torque N.M: 32

Output speed RPM: 2±0.5



Hall output: 2

Hall type: 40F/39

Hall input voltage V: 5~24



Wire Define:

1. Thick Red: Motor +

2. Thick Black: Motor -

3. Yellow Green: GND

4. Thin Yellow: hall B

5. Thin Red: hall +24V

6. Thin Black: hall GND

7. Thin Green: hall A



Technical Requirements



1. The motor should be flexible after assembly.

2. No abnormal noise when the power is turned on (the red line is connected to the positive pole of the power supply).

3. Axial clearance: No (can use wave crest recovery).

4. Withstand voltage test: 800VAC, 5mA, Is no breakdown, no flicker.

5. Insulation resistance: > 20MΩ.



Dimensions

Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System 2Ve9 Vertical High Productivity Solar Tracker Slew Drive Applied In Flat Solar Tracking System 3
