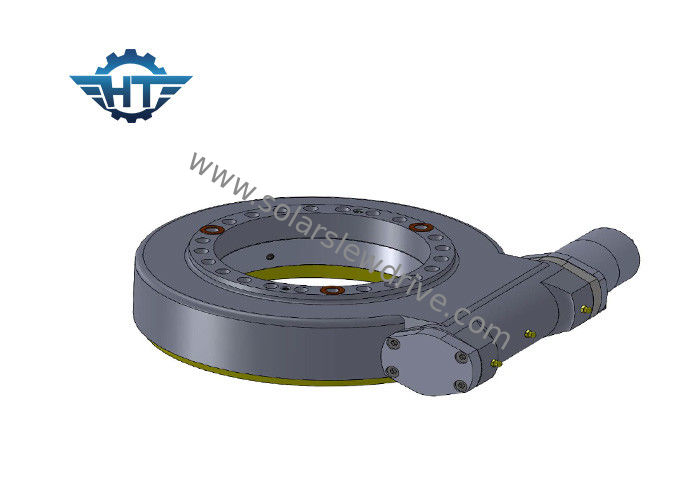

High Precision ZSE Series Solar Slewing Drives With 24 VDC Electric Planetary Gear Motors
Description
Backlash – the existing clearance gaps between gear teeth and worm is a very common and often a considerable and key factor in the designs of gear and drive systems. The gaps between them allow room for applying lubrication and can help accommodate the stresses of operation heat inside.
The gear and worm are contact in a condition of near perfect mesh. This will in turn allows for a highly efficient transfer of driving force, uniform load distribution and a very impressive level of positioning accuracy in drive
Our slewing gearboxes have proved well performed under extreme operating conditions. We provided slew drives with cost savings from standard parts, reduced lead times, tested and proven designs across the whole range and readily available spares for units in service especially in mass production.
Parameters of ZSE slewing drives
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight | Ratio |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | ||||
| 3" | 31:1 | 150 | 1500 | 30 | 15 | 1750 | 40% | 0° | Yes | 9kg | 31:1 |
| 5" | 37:1 | 317.5 | 6000 | 68 | 27 | 2300 | 40% | 0° | Yes | 14kg | 37:1 |
| 7" | 57:1 | 875 | 10500 | 132 | 58 | 3300 | 40% | 0° | Yes | 23kg | 57:1 |
| 9" | 61:1 | 1425 | 49900 | 340 | 130 | 7700 | 40% | 0° | Yes | 44 kg | 61:1 |
Parameters of SE Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Applications Which Need High Precision
1. Rotary tables
2. Robotic system
3. Concentrated solar power stations
4. Antenna Satellite
