|Place of Origin:||China|
|Minimum Order Quantity:||1 piece|
|Price:||USD 280~504 / pc|
|Packaging Details:||plywood box|
|Delivery Time:||15~45 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||2000 pcs per month|
|Application:||Heavy Truck||Place Of Origin:||Changzhou, China|
|Driver:||220VAC/380VAC Motors||Warranty:||5~10 Years|
slew drive motor,
worm gear slew drive

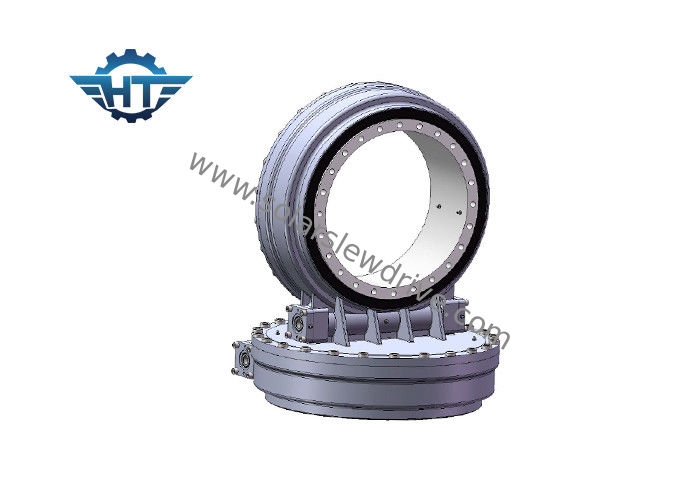

SDE Series Slew Drive Gearbox, Worm Gear Reducer For CSP And Solar Tracker System
SDE dual-axis slewing drives are assured for a 30-year field life of precise 3D positioning. SDE drives create an efficient and reliable solution in a single drive. We qualify all of our components and raw materials using standards set by ISO 9001, CE certifications to maximize field life.
The azimuth & Elevation combined and enclosed designing can improve the tracking precision and power generation efficiency.
FRB using combined designing achieved better rigidity, impact resistance stronger, able to withstand the harsh environment of the desert and others.
High precision worm gear slew drive for solar tracking system
Performance Table of SE21
|Model||horizontal inch worm drive|
|Rated Output Torque||16 kNm|
|Tilting Torque||271 kNm|
|Axial Load||1600 kN|
|Radial Load||640 kN|
|Holding Torque||65 kNm|
|Working Temperature||-30～+120 ℃|
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
