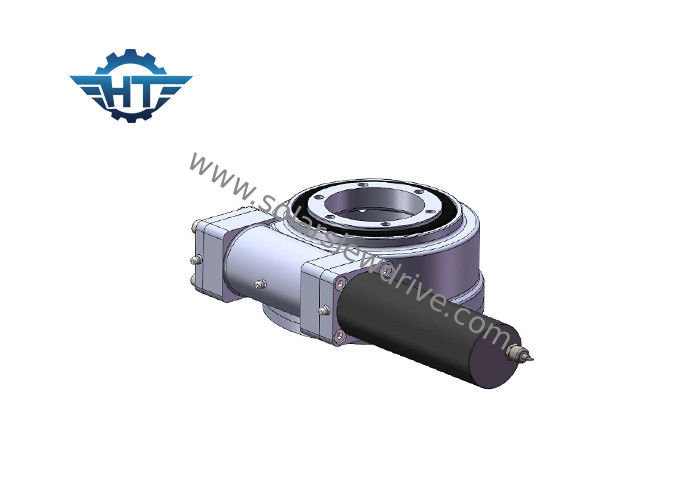

SE5 Horizontal Mounted Slew Drive Gearbox With 24 VDC Planetary Motor For Solar Trackers

SE5 Horizontal Mounted Slew Drive Gearbox With 24 VDC Planetary Motor For Solar Trackers

  • SE5 Horizontal Mounted Slew Drive Gearbox With 24 VDC Planetary Motor For Solar Trackers
  • SE5 Horizontal Mounted Slew Drive Gearbox With 24 VDC Planetary Motor For Solar Trackers
SE5 Horizontal Mounted Slew Drive Gearbox With 24 VDC Planetary Motor For Solar Trackers
Product Details:
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Place Of Origin: Changzhou Model: SE5
Gear Ratio: 37:1 Application: Solar Trackers
Driver: Planetary Gear Motor Certificate: ISO9001, CE
Installation: Horizontal Maintenance: Free
Color: As Requested Backlash: 0.1 Degree
High Light:

slew drive motor

,

slewing ring gear

SE5 Horizontal Mounted Slew Drive Gearbox With 24 VDC Planetary Motor For Solar Trackers



Description



Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.



Model: SE5 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 600 N.m
Tilting Moment Torque 6 K N.m Holding Torque 9.2 K N.m
Static Axial Rating 68 KN Static Radial Rating 27 KN
Dynamic Axial Rating 34 KN Dynamic Radial Rating 14 KN
Gear Ratio 37:1 Efficiency 40%



Recommended slewing drive



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



SE5 Horizontal Mounted Slew Drive Gearbox With 24 VDC Planetary Motor For Solar Trackers 0



The main advantages of SE slewing drives



1. Rotation 360 degrees

2. Connection of a driving motor from the left or right side

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Grease had been filled before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping

8. High tilting torque, suitable for horizontal installation
