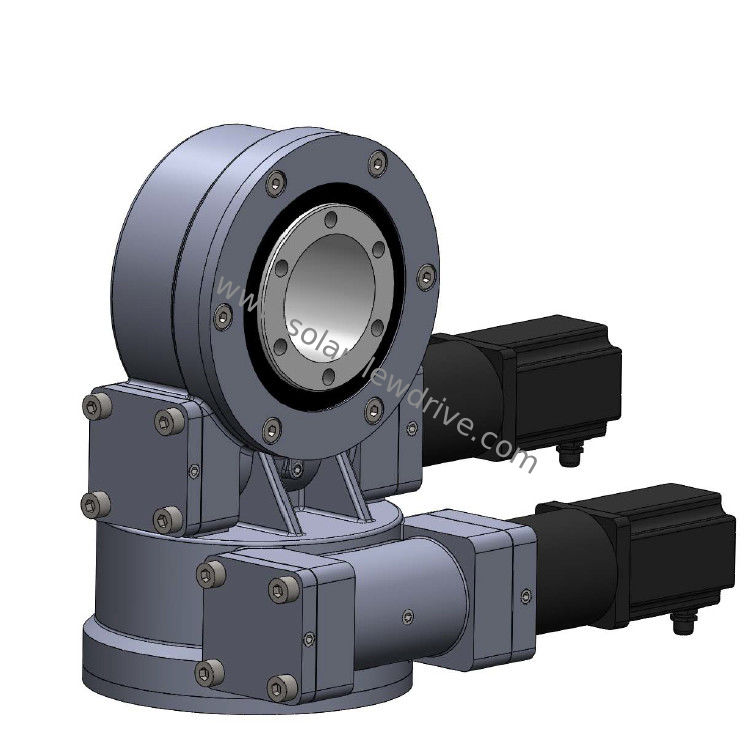

SDE3 Dual Axis Solar Slew Drive High Torque With Low Speed For Solar Tracker
Description
A worm gear box is composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotates at azimuth and elevation driven by slewing drive.
Zero backlash slewing drive is a special slewing drive with its gear and worm having a perfect mesh and also has reasonable gaps of lubrication and operating heating.
Parameters of ZSDE Series
Model | Ratio | Rated Output Torque (N.m) | TiltingTorque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Effeciency | Precision (degree) | Self-locking | Weight (kg) |
3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.03 | Yes | 27kg |
5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.03 | Yes | 36kg |
7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.03 | Yes | 58kg |
9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.03 | Yes | 94kg |
Parameters of SDE Series
Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Applications
Typical applications include concentrated solar power such as heliostat, parabolic trough, fresnel, concentrated PV, satellite and radar dishes, robotic system etc
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7days; for batch orders: within 25 days.
