Solar Slew Drive
Created with Pixso. SDE7 Worm Gear Slewing Ring, Tooth Contact Enclosed Slewing Drive Motor For Solar Plant

SDE7 Worm Gear Slewing Ring, Tooth Contact Enclosed Slewing Drive Motor For Solar Plant

Brand Name: HangTuo
Model Number: ZSDE7
MOQ: 1 piece
Price: USD 280~504 / pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Model:
7 Inch
Gear Ratio:
57:1
Efficiency:
40%
Precise:
≤0.1
Driver:
Electric Motor
Type:
Vertical Single Axis
Application:
Solar Or Industrial
OEM:
Yes
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

hydraulic slew motor

,

solar tracker drive

Product Description

High Accuracy SDE7 Worm Gear Slewing Ring, Dual Axis Enclosed Slewing Drive


Production Description


Model: SDE7
Place of Origin: Changzhou,China
Type: Enclosed
Material: 42CrMo,50Mn
Output Torque: 2000 N.m
Tilting Moment Torque: 7500 N.m
Holding Torque: 13200 N.m
Gear Ratio: 57:1
Efficiency:40%



Hangtuo‘s slewing drive is composed of the housing, slewing bearing, sealing, enveloping worm with some completed spare parts. We can also produce the Electronic motor and Hydraulic motor used for slewing drives, which can moves for clockwise direction and counter clockwise direction rotation.



Advantage



1. Strong overturning moment based on slewing ring

2. Adopt enveloping worm drive

3. Drive larger load for using multi tooth contact

4. Better static self-locking function



Parameters of SDE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705

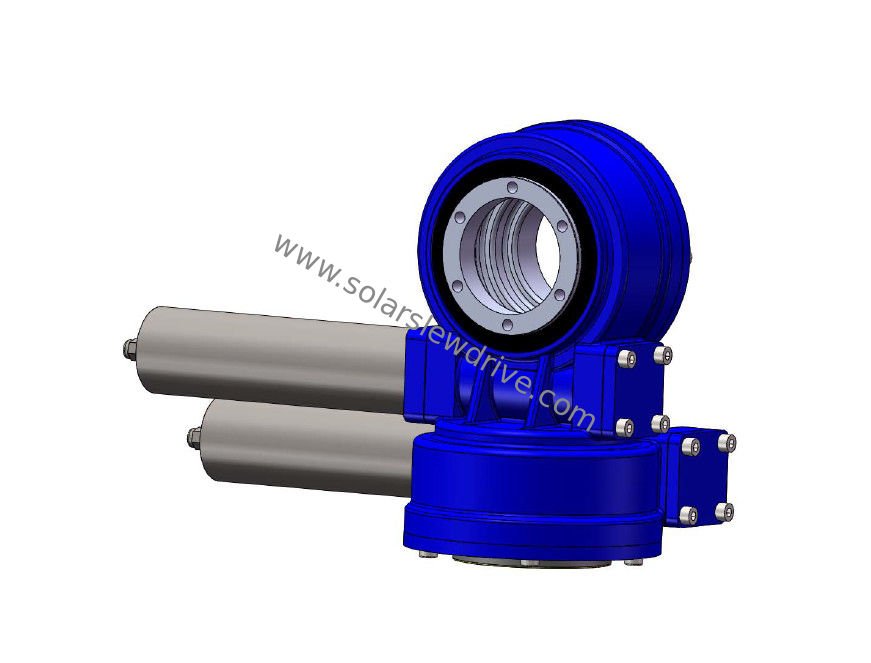

SDE7 Worm Gear Slewing Ring, Tooth Contact Enclosed Slewing Drive Motor For Solar Plant 0



Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.



There is usually single axis type; dual axis type, vertical type and dual worm type from 3 to 25 inch, for detail pls contact us for the sales drawing.
