High Precision VE5 Solar Tracker Drive With 24VDC Electric Motor For Parabolic Reflectors

Brand Name: HangTuo
Model Number: VE5
MOQ: 1 piece
Price: USD 280~504 / pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Model:
5 Inch
Gear Ratio:
37:1
Efficiency:
40%
Precise:
Less Than 0.1
Driver:
Electric Motor
Type:
Vertical
Application:
Parabolic
Color:
Requested
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

hydraulic slew motor

,

solar tracker drive

Product Description

High Precision VE5 Solar Tracker Drive With 24VDC Electric Planetary Gearbox



Description



Vertical 5 inch high precision slewing drive could be applied in parabolic trough power plants (PTPP). It is a kind of developed thermal power station which can generate electricity by collecting the heat of the sun to the high temperature fluid.



The parabolic through power plants consists of:

  • parabolic reflectors (mirrors)
  • receiver tube
  • metal support structure
  • tracking system that includes the slewing drives, sensors, and controls

VE5 Performance Parameters



Model: vertical 5 inch slewing drive
Rated Output Torque: 800 Nm
Tilting Torque: 5000 Nm
Axial Load: 16 kN
Radial Load: 27 kN
Holding Torque: 9200 Nm
Efficiency: 40%
Precision: ≤0.1 °
Self-locking: Yes
Weight: 18 kg

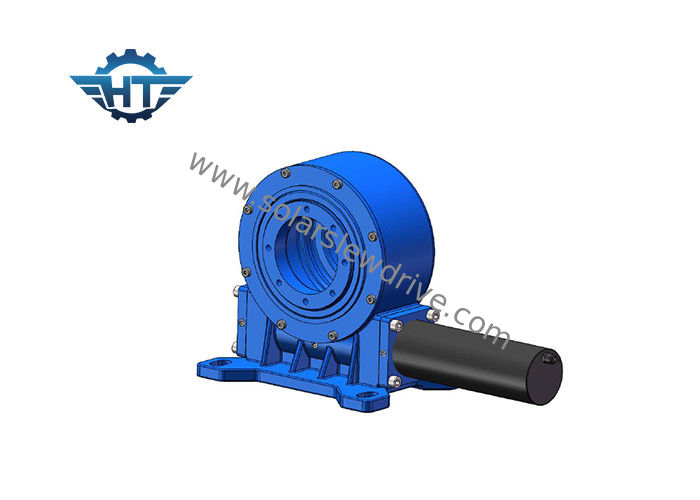

High Precision VE5 Solar Tracker Drive With 24VDC Electric Motor For Parabolic Reflectors 0



Features



1. Excellent backholding torque to ensure the safety

2. High precision to ensure a stable reflector

3. High IP rating to improve service life in outdoor comlicated conditions



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
