Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | ZSE9 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | 9 Inch | Gear Ratio: | 61:1 |
|---|---|---|---|
| Application: | Rotary Tables | Place Of Origin: | Changzhou, China |
| Driver: | Servo Motor | Installation: | Horizontal |
| Color: | As Requested | Backlash: | Less Than 0.03 Degree |
| High Light: | worm drive gearbox,worm gear slewing ring |
||
Description

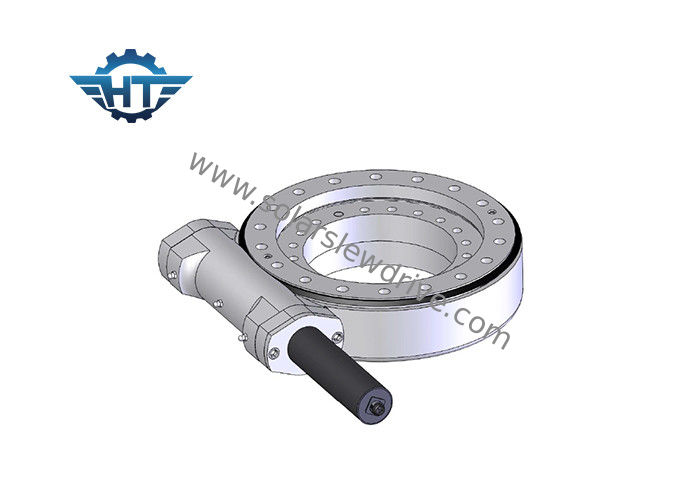

The slewing drive is a gearbox that can safely hold radial and axial loads, as well as transmit a torque for rotating. The rotation can be in a single axis or in multiple axes together. Slewing drives are made by manufacturing gearing, bearings, seals, housing, motor and other auxiliary components and assembling them into a finished gearbox.e.
Zero backlash slewing drive is a special slewing drive with its gear and worm having a perfect mesh and also has reasonable gaps of lubrication and operating heating.
Parameters of ZE slewing drives
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight | Ratio |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | ||||
| 3" | 31:1 | 150 | 1500 | 30 | 15 | 1750 | 40% | 0° | Yes | 9kg | 31:1 |
| 5" | 37:1 | 317.5 | 6000 | 68 | 27 | 2300 | 40% | 0° | Yes | 14kg | 37:1 |
| 7" | 57:1 | 875 | 10500 | 132 | 58 | 3300 | 40% | 0° | Yes | 23kg | 57:1 |
| 9" | 61:1 | 1425 | 49900 | 340 | 130 | 7700 | 40% | 0° | Yes | 44 kg | 61:1 |
The main advantages of ZE slewing drives
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side,
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High accuracy
