Place of Origin: | China |
Brand Name: | HangTuo |
Certification: | CE, ISO9001 |
Model Number: | ZSE3" |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 280~504 / pc |
Packaging Details: | plywood box |
Delivery Time: | 15~45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Model: | ZSE3 | Gear Ratio: | 31:1 |
---|---|---|---|
Application: | Parabolic Though And Heating Tower | Place Of Origin: | Changzhou, China |
Driver: | 24VDC Gear Motor With Encoders | Installation: | Horizontal Mounted |
Color: | As Requested | Backlash: | Less Than 0.03 Degree |
High Light: | worm drive gearbox,worm gear slewing ring |
Description

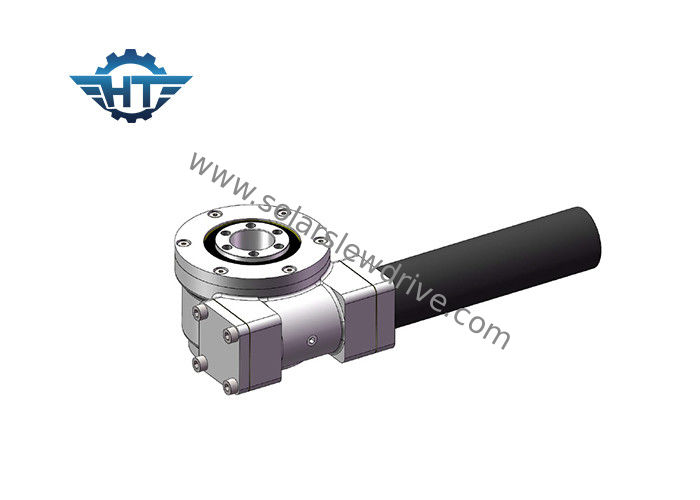

A worm gear box is composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotates at azimuth and elevation driven by slewing drive.
Zero backlash slewing drive is a special slewing drive with its gear and worm having a perfect mesh and also has reasonable gaps of lubrication and operating heating.
Parameters of ZE slewing drives
Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight | Ratio |
N.m | N.m | kN | kN | N.m | degree | Yes | kg | ||||
3" | 31:1 | 150 | 1500 | 30 | 15 | 1750 | 40% | 0° | Yes | 9kg | 31:1 |
5" | 37:1 | 317.5 | 6000 | 68 | 27 | 2300 | 40% | 0° | Yes | 14kg | 37:1 |
7" | 57:1 | 875 | 10500 | 132 | 58 | 3300 | 40% | 0° | Yes | 23kg | 57:1 |
9" | 61:1 | 1425 | 49900 | 340 | 130 | 7700 | 40% | 0° | Yes | 44 kg | 61:1 |
Applications
Typical applications include concentrated solar power such as heliostat, parabolic trough, fresnel, concentrated PV, satellite and radar dishes, robotic system etc
Contact Person: Jessie
Tel: +86 18800586965
