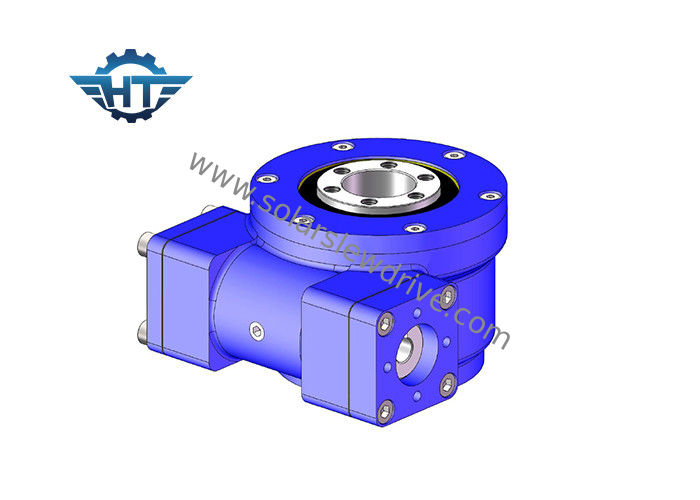

Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE5 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | 5 Inch | Gear Ratio: | 37:1 |
|---|---|---|---|
| Application: | Solar Trackers And Machinery Table | Place Of Origin: | Changzhou, China |
| Driver: | Electric Motor | Installation: | Horizontal |
| Color: | As Requested | Backlash: | Less Than 0.1 Degree |
| High Light: | worm gear slewing ring,worm gear motor |
||
Description
Due to the high gear ratio and the large surface contact between worm and worm gear, very high torque values can be transmitted by very small sized slew drives which means highest power density. Worm gear driven slew drives could be used in applications which demand of low speed and high torque such as solar trackers, concentrated heat power stations. When it is used in continuous rotation applications with high rotation speed is not permissible due to higher duty which will cause overheating inside the drives and failure to function.
Specifications
| Model Number | SE5 |
| Brand Name | Hangtuo |
| Gear Ratio | 37:1 |
| Output Torque (Nm) | 600 |
| Tilting Torque (Nm) | 6000 |
| Holding Torque (Nm) | 9200 |
| Weight (kgs) | 14 |
| Working Temperature (℃) | -30～+120 |
| Place Of Origin | Changshu, China (Mainland) |
| Inspect | Full inspection |
| Processing | Forging/machining/coating/assembly |
| Service | 24 hours online |
Additional Information
| Min. Order Quantity | 5 units, sample order available |
| Port | China seaport ningbo/shanghai |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time | Lead time 20-40 days |
| Packaging Details | Wooden case free from fumigation |
