SE3 Single Axis Small Worm Gear Slew Drive With Electric Motor For Single Axis And Dual Axis Solar Trackers

SE3 Single Axis Small Worm Gear Slew Drive With Electric Motor For Single Axis And Dual Axis Solar Trackers

  • SE3 Single Axis Small Worm Gear Slew Drive With Electric Motor For Single Axis And Dual Axis Solar Trackers
  • SE3 Single Axis Small Worm Gear Slew Drive With Electric Motor For Single Axis And Dual Axis Solar Trackers
SE3 Single Axis Small Worm Gear Slew Drive With Electric Motor For Single Axis And Dual Axis Solar Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE3"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: SE3 Gear Ratio: 31:1
Application: Solar Energy Place Of Origin: Changzhou, China
Driver: 12/24 VDC Motors Certificate: ISO9001, CE
Installation: Horizontal Or Vertical Maintenance: Free
Color: As Requested Backlash: Less Than 0.1 Degree
High Light:

worm drive gearbox

,

worm gear slewing ring

SE3 Single Axis Small Worm Gear Slew Drive With Electric Motor For Single Axis And Dual Axis Solar Trackers



Description



A slew worm drive system is a compactly constructed unit which consists of a slewing ring, base plate and worm. This unit brings the advantages of a slewing ring and a worm into one unit.



It is suitable for applications which demand slow rotation with a continuous or cyclical movement capable of handling combined loads. The product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system to equipment.

Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in varying equipment such as mobile assembly platforms, satellite system, hydraulic loading cranes on haulage vehicles, small marine cranes, extendable rotating ladders, in wheel units of large marine portal transporters.

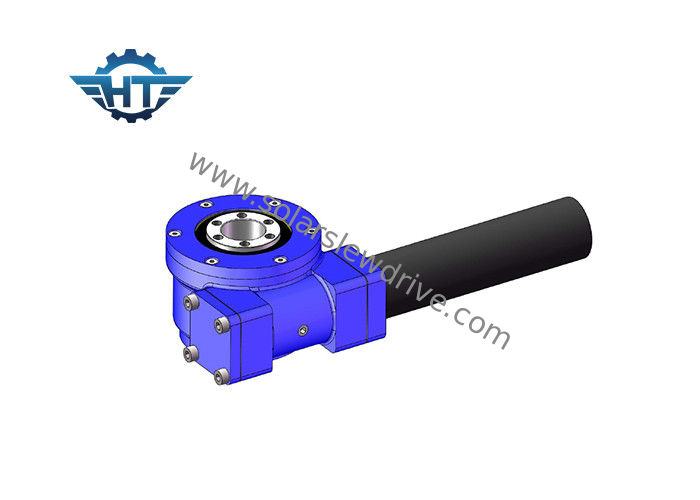

SE3 Single Axis Small Worm Gear Slew Drive With Electric Motor For Single Axis And Dual Axis Solar Trackers 0

The main advantages of worm drives are as follows:

1. Rotation 360 degrees

2. Connection of a driving motor from the left or right side

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping



Parameters of Slewing Drive



Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



Motor Selection

Optional Items: Brushed DC motors (12V/24V/48V) with or without hall sensors, brushless DC gear motors, AC Motor(220V/380V), Encoder.
