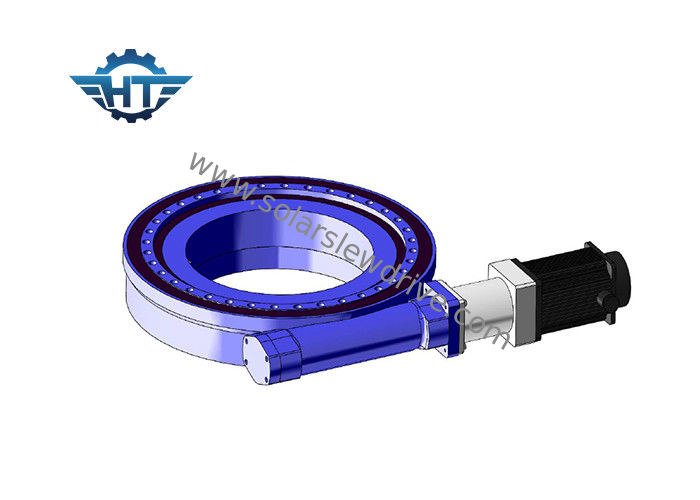

High Strengthen Gear Ratio 31 To 150 Slewing Bearing With Electric Motors For Construction Machinery

High Strengthen Gear Ratio 31 To 150 Slewing Bearing With Electric Motors For Construction Machinery

  • High Strengthen Gear Ratio 31 To 150 Slewing Bearing With Electric Motors For Construction Machinery
  • High Strengthen Gear Ratio 31 To 150 Slewing Bearing With Electric Motors For Construction Machinery
High Strengthen Gear Ratio 31 To 150 Slewing Bearing With Electric Motors For Construction Machinery
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE12"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: SE12 Gear Ratio: 78:1
Application: Construction Machinery And New Energy Place Of Origin: Changzhou, China
Driver: 220VAC/380VAC Servo Motors Warranty: 5~10 Years
Certificate: ISO9001, CE Installation: Horizontal
High Light:

worm drive gearbox

,

worm gear slewing ring

High Strengthen Gear Ratio 31 To 150 Slewing Bearing With Electric Motors For Construction Machinery​



Description



(1) We have first-class testing equipment to detect the parameters of the worm and gear and control the quality of the slewing drives.

All the spareparts must be detected to check if the quality is qualified and the unqualified parts will be eliminated directly.



(2) We have our own experienced R & D team to give customer better solutions and help customers to solve the problem.

We can design customers own logo to show on the nameplate



(3) Price. Prices are quite different between different manufacturers based on the manufacturers scale , supply chain management etc. Our price is not the lowest but is among the competitive.



High Strengthen Gear Ratio 31 To 150 Slewing Bearing With Electric Motors For Construction Machinery 0



Performance Table



Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



Installation Instructions



The SE series slewing drives are generally installed horizontally. And we also recommend to install horizontally considering the performance of the slewing drives.



Features



1. Those products are designed for long life, working in hard environment conditions.

2. Various sizes available, including customized.

3. Easy to installation and product warranty.



Applicatons



The SE series slewing drives are usually applied in wind turbines, solar energy power stations, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
