Worm Gear Slew Drive
Created with Pixso. Skeleton Oil Seal SE21 CE Certified Worm Gear Slew Drive For Solar Trackers And Harbor Cranes

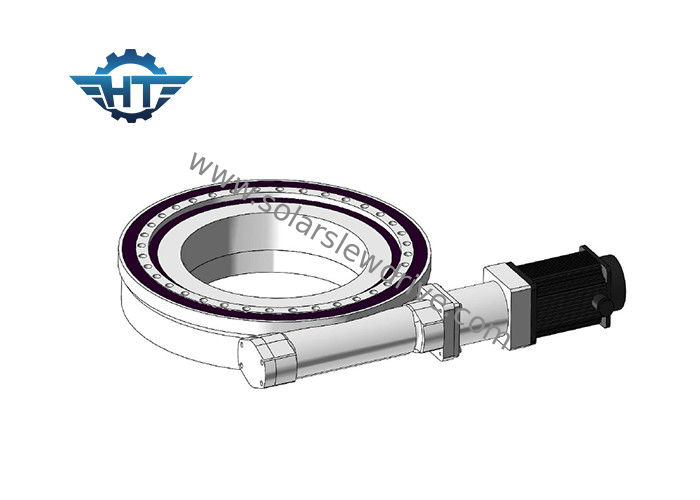

Skeleton Oil Seal SE21 CE Certified Worm Gear Slew Drive For Solar Trackers And Harbor Cranes
  • name
  • name

Skeleton Oil Seal SE21 CE Certified Worm Gear Slew Drive For Solar Trackers And Harbor Cranes

Brand Name: HangTuo
Model Number: SE21"
MOQ: 1 piece
Price: USD 280~504 / pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Model:
SE21
Gear Ratio:
125:1
Application:
Heavy Truck
Place Of Origin:
Changzhou, China
Driver:
220VAC/380VAC Motors
Warranty:
5~10 Years
Certificate:
ISO9001, CE
Installation:
Horizontal
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

worm gear slewing ring

,

worm gear motor

Product Description

Skeleton Oil Seal SE21 CE Certified Worm Gear Slew Drive For Solar Trackers And Harbor Cranes



Description



High precision worm gear slew drive for heavy truck

  • Surface color: as your requirement
  • Material: 50Mn, 42CrMo, any other material and dimension depends on customers' demand. Usage: machinery/solar energy
  • Manufacturing process: casting parts, machining parts, coating parts, assembly, full inspection.
  • Performance testing: salt spray, UV testing, high low temperature testing, life time testing, broken testing, torque testing
  • Tolerance: according to the engineering standard

We are ISO 9001: 2008 certified firm.



Our Services

  1. We are willing to provide a sample for quality and function testing.
  2. 3D design drawings are available
  3. Lead Time: 7~15 days for samples
  4. Equipment List: from simple 2-axis turning to 7-axis, turn-mill-drill CNC imported machines; we are equipped with a full line of CNC equipment.

Performance Table of SE21



Model horizontal inch worm drive
Ratio 125:1
IP Grade IP66
Rated Output Torque 16 kNm
Tilting Torque 271 kNm
Axial Load 1600 kN
Radial Load 640 kN
Holding Torque 65 kNm
Efficiency 40%
Precision ≤0.1 °
Self-locking Yes
Weight 140 kg
Working Temperature -30～+120 ℃
