Worm Gear Slew Drive
Created with Pixso. SE1 CE Certified Small Worm Gear Slew Drive With Planetary Gear Motor For Single Axis Solar Trackers

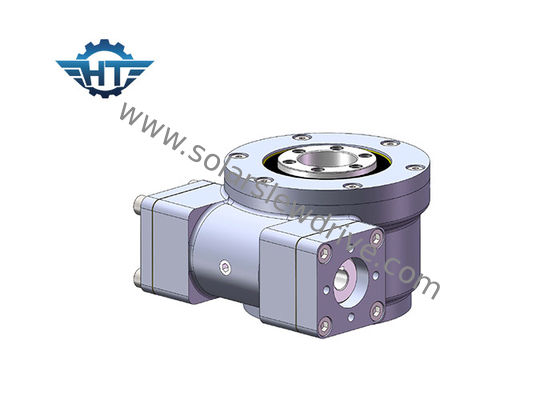

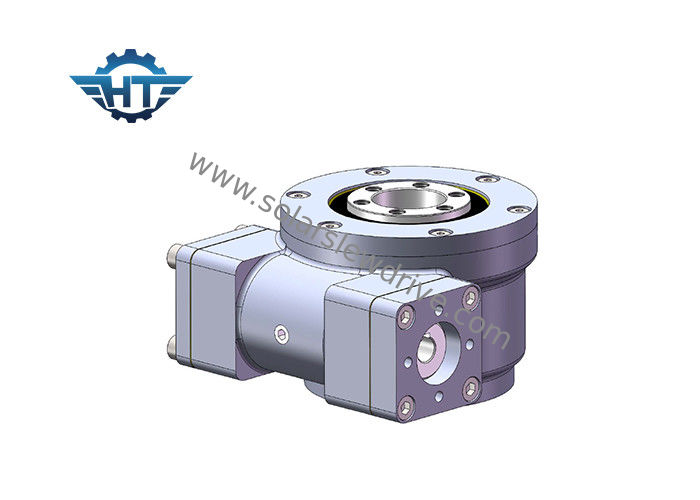

SE1 CE Certified Small Worm Gear Slew Drive With Planetary Gear Motor For Single Axis Solar Trackers

Brand Name: HangTuo
Model Number: SE1"
MOQ: 1 piece
Price: USD 280~504 / pc
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001
Material:
50Mn, 42CrMo
Model:
SE1"
Gear Ratio:
31:1
Efficiency:
40%
Color:
RAL 9006 Or As Requested
Application:
CPV, CSP, PV
Place Of Origin:
Changzhou, China
Driver:
12/24 VDC Motor
Certificate:
ISO9001, CE
Encoder:
Yes
Packaging Details:
plywood box
Supply Ability:
2000 pcs per month
Highlight:

worm drive gearbox

,

worm gear motor

Product Description

SE1 CE Certified Small Worm Gear Slew Drive With Planetary Gear Motor For Single Axis Solar Trackers



Description



For slewing drive, there are 11 different sizes available from 1" to 25" with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields.

Hangtuo has implement strict quality control system, meanwhile, we have passed ISO9001-2008 quality system certification.








Performance Parameters of SE Series


Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182


SE1 CE Certified Small Worm Gear Slew Drive With Planetary Gear Motor For Single Axis Solar Trackers 1



Motor Selection

Optional Items: Brushed DC motors (12V/24V/48V) with or without hall sensors, brushless DC gear motors, AC Motor(220V/380V), Encoder.

Installation

SE1 slewing drives could be installed both vertically and horizontally.

It is advised to mount the slewing drives horizontally upside in solar or mechinery applications for better protection. If needed, it could be also mounted vertically, but need addtional supporters.
