Place of Origin: | China |
Brand Name: | HangTuo |
Certification: | CE, ISO9001 |
Model Number: | VE5" |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 280~504 / pc |
Packaging Details: | plywood box |
Delivery Time: | 15~45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Material: | 50Mn, 42CrMo | Model: | VE5" |
---|---|---|---|
Gear Ratio: | 37:1 | Efficiency: | 40% |
Color: | As Requested | Application: | Solar Tracker |
Place Of Origin: | Changzhou, China | Driver: | 12/24VDC Motor |
Warranty: | 5~10 Years | Certificate: | ISO9001, CE |
Installation Site: | Open Field | Feature: | Long Life |
High Light: | worm drive gearbox,worm gear motor |

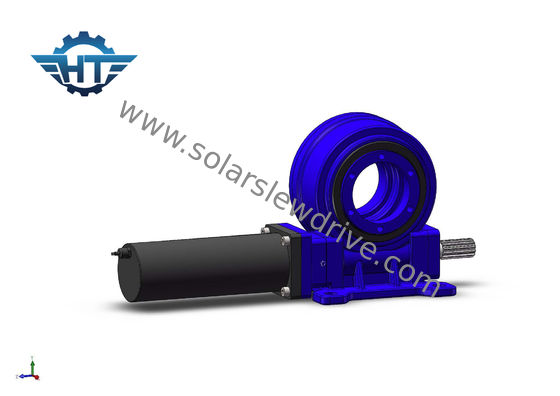

VE5 Small Backlash Worm Gear Slew Drive With Electric Motor For Horizontal Single Axis Solar Trackers
Description
The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new slewing drive features easy installation, easy maintenance and a greater degree of installation space.
Performance Parameters of VE Series
Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 13 |
5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 18 |
7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 28 |
8" | 51:1 | 2250 | 11200 | 50 | 80 | 20400 | 40% | ≤0.1 | Yes | 35 |
9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 51 |
12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 61 |
14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 78 |
17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 105 |
21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 185 |
25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 244 |
Our Services
There are more than 10 different sizes, starting from 3' size to 25" inch size, among them are 5", 7", 9" 12", 14", 17" , 19" and 21". They are both widely used in solar tracking systems (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.
