Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE21" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | SE21" |
|---|---|---|---|
| Gear Ratio: | 125:1 | Rated Output Torque: | 16 KNm |
| Tilting Torque: | 205 KNm | Efficiency: | 40% |
| Color: | RAL 9006 Or As Requested | ||
| High Light: | worm drive gearbox,worm gear slewing ring |
||

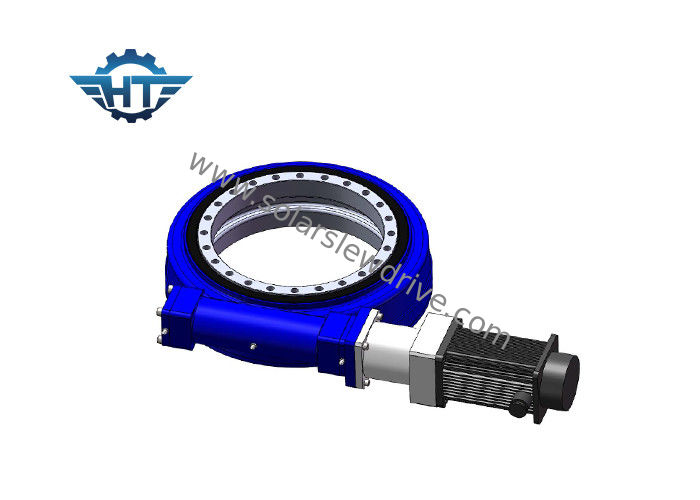

SE21 High Torque Speed Reducer Worm Gear Slew Drive For Robot And Construction Machinery
Product Descripition
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Hangtuo
Static Axial rating: 1600 KN
Static radial rating: 640 KN
Dynamic axial rating: 385 KN
Dynamic radial rating: 335 KN
Condition: New
Output torque: 16 kNm
Gear Ratio: 125:1
Tilting moment torque: 205 KN.m
Holding torque:105 KN.m
Motor: 125CC,160CC,200CC hydraulic motor
After-sales Service Provided: Engineers available to service machinery overseas
Hangtuo slewing drives and slewing bearing/ring can be used for construction equipment and automation robotics system, such as truck mounted cranes, offshore carnes, excavator.
Advantages
1. Strong overturning moment
2. Adopt enveloping worm drive
3. Multi tooth contact, high load capacity
4. Self-locking function
Recommended slewing drive
| Enclosed housing slewing drive | SE1 | SE3 | SE5 | SE7 | SE9 | SE12 | SE14 | SE21 |
| Precise enclosed housing slewing drive | ZE3 | ZE5 | ZE7 | ZE9 | ||||
| Worm gear slewing drive | WE1 | WE3 | WE5 | WE7 | WE9 | |||
| Dual axis slewing drives | SDE3 | ZDE3 | SDE5 | ZDE5 | SDE7 | ZDE7 | ||
| Vertical enclosed slewing Drive | VE3 | VE5 | VE6 | VE7 | VE9 | VE12 |
