Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE17" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | SE17" |
|---|---|---|---|
| Gear Ratio: | 102:1 | Rated Output Torque: | 9450Nm |
| Tilting Torque: | 203kNm | Efficiency: | 40% |
| Color: | RAL 9006 Or As Requested | Load Capacity: | High |
| High Light: | worm gear slewing ring,worm gear motor |
||

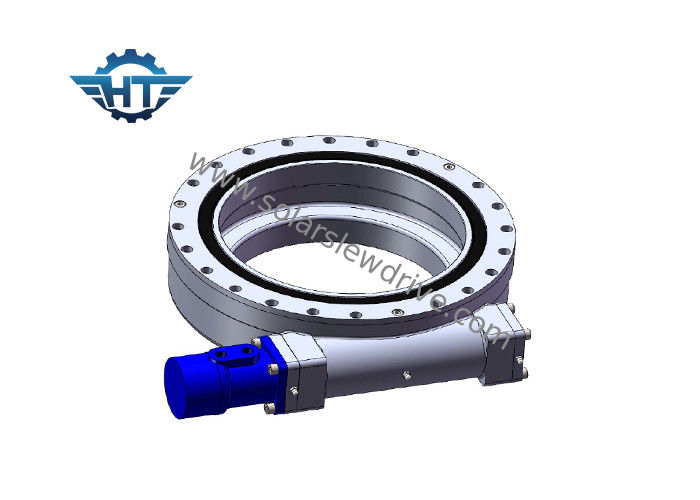

Truck Used 17 Inch Worm Gear Drive, Heavy Load With Enclosed Housing For Mist Cannon
Description
For mist cannon truck used worm gear slewing drive SE17
Rated Output Torque: 9.45 kN.m
Tilting Moment Torque: 203 kN.m
Axial Load: 980kN
Radial Load: 390kN
Holding Torque: 53kN.m
Gear Ratio:102:1
Tracking Precision: ≤0.15
Self-locking gears: Yes
Weight: 85kg
Changzhou Hangtuo Machinary Co.,ltd is a professional manufacturer and exporter of slewing bearing/slewing ring/slew circle, slewing drives/slew drive, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems etc.
Advantages
1. Strong overturning moment
2. Adopt enveloping worm drive
3. Multi tooth contact, high load capacity
4. Self-locking function
Parameters Table of SE Slewing Drives
