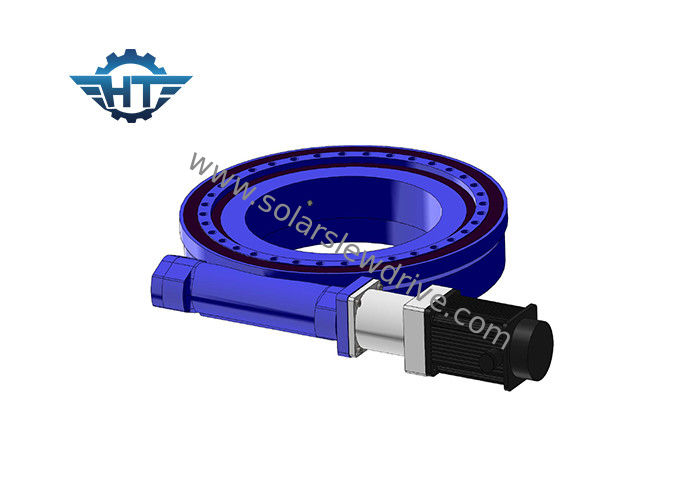

SE9 Horizontal Mounted Model Worm Gear Slew Drive With Servo Motors For Automation Equipment

SE9 Horizontal Mounted Model Worm Gear Slew Drive With Servo Motors For Automation Equipment

  • SE9 Horizontal Mounted Model Worm Gear Slew Drive With Servo Motors For Automation Equipment
  • SE9 Horizontal Mounted Model Worm Gear Slew Drive With Servo Motors For Automation Equipment
SE9 Horizontal Mounted Model Worm Gear Slew Drive With Servo Motors For Automation Equipment
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SE9"
Gear Ratio: 61:1 Rated Output Torque: 4300Nm
Holding Torque: 31000Nm Tilting Torque: 45000Nm
Efficiency: 40% Color: RAL 9006 Or As Requested
High Light:

worm drive gearbox

,

worm gear motor

SE9 Horizontal Mounted Model Worm Gear Slew Drive With Servo Motors For Automation Equipment


Advantages


1. Strong overturning moment
2. Adopt enveloping worm drive
3. Multi tooth contact, high load capacity
4. Self-locking function


Worm drive is a higher wear-resistance of worm gear drive, which have high load capacity and tilting moment torque to ensure stability, reliability and well performanced. The worm drive is also available for higher tracking precise field.



SE9 Horizontal Mounted Model Worm Gear Slew Drive With Servo Motors For Automation Equipment 0



SE9 Performance Parameters



Model: horizontal 9 inch worm drive
Rated Output Torque: 4300 Nm
Tilting Torque: 45000 Nm
Axial Load: 340 kN
Radial Load: 130 kN
Holding Torque: 31000 Nm
Efficiency: 40%
Precision: ≤0.1 °
Self-locking: Yes
Weight: 49 kg



SE Slewing Drive Data



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204
