Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE7" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | VE7" | Gear Ratio: | 51:1 |
|---|---|---|---|
| Rated Output Torque: | 6120 Nm | Holding Torque: | 39 KN.m |
| Tilting Torque: | 10 KN.m | Efficiency: | 40% |
| Color: | RAL 9006 Or As Requested | Max Torque: | 10200 N.m |
| High Light: | worm gear slewing ring,worm gear motor |
||

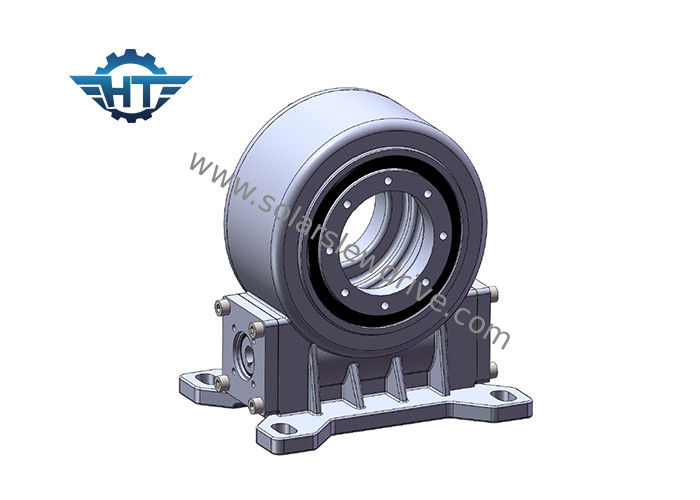

VE7 Vertical Single Axis Worm Drive Slewing Bearings With Stepper Motor And Controllers For Solar Trackers
Description
Reliability
Slewing drives are designed and tested to guarantee a 30-year field life. All of the raw materials are meet the standards required by ISO9001 and CE. We implement a sound quality control to ensure out products of high quality, reliable and low cost.
Performance
slew drives are powered with hourglass worm technology to give the gearbox enormous strength and power, maximum survivability load-holding as well as increased efficiency and accuracy.
Applications
Slewing drive applications include solar trackers, wind turbines, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s and automotive lifts etc
Installation
Our slewing drives could be mounted horizontally, vertically or a combination of multiple axes.
VE7 Performance Parameters
| Model: | VE7 Slewing Drive |
| Rated Output Torque: | 6120 N.m |
| Tilting Torque: | 10 kN.m |
| Static Axial Load: | 110 kN |
| Static Radial Load: | 60 kN |
| Holding Torque: | 39 kN.m |
| Efficiency: | 40% |
| Precision: | ≤0.1 ° |
| Self-locking: | Yes |
| Weight: | 45 kg |
Technical Table of VE Slewing Drive
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Q&A
1. How to choose?
Please specify the diameter size, width, voltage, power and no-load speed of the required motors, the square meters of the solar panels/mirrors, the arrangement of those solar panels/mirrors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight.
We will give you the best shipping cost after you choose the suitable slewing drives.
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex
5. What's your minimum order quantity?
1 set
6. What's your delivery time?
For standard samples: 0~15 days; for batch orders: within 25~40 days.
