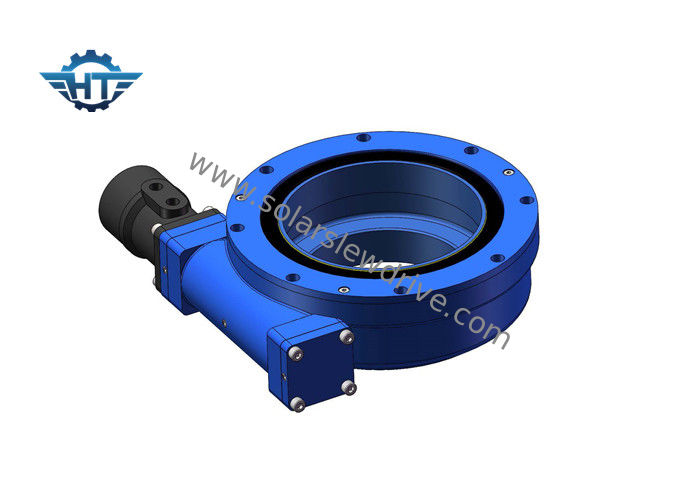

SE14 Worm Gear Hydraulic Slew Drive Gearbox With Enclosed Housing For Solar Trackers

SE14 Worm Gear Hydraulic Slew Drive Gearbox With Enclosed Housing For Solar Trackers

    • SE14 Worm Gear Hydraulic Slew Drive Gearbox With Enclosed Housing For Solar Trackers
    • SE14 Worm Gear Hydraulic Slew Drive Gearbox With Enclosed Housing For Solar Trackers
  • SE14 Worm Gear Hydraulic Slew Drive Gearbox With Enclosed Housing For Solar Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE14"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 330~360/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model Number: SE14 Holding Torque: 54200 Nm
    Tilting Torque: 68000 Nm Output Torque: 6550 Nm
    Static Axial Load: 680 KN Static Radical Load: 230 KN
    Raw Material: 50Mn, 42CrMo Weight: 63 Kg
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive





    Product Description



    The standard slew drives are fitted with an open housing while an open housing is failed to give the parts a good IP rating. Hangtuo's slewing drives are with enclosed housing which provides the slewing drive a IP66 ingress protection. That helps the slewing drive can be worked in harsh environment. Our slewing drive have the feature of self locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device. ​



    Performace Parameters of SE Series



    Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



    Application



    Typical applications include solar trackers, wind turbines, satellite antenna and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts, robot etc.



    Transport, Handling & Storage



    Transport only in horizontal position, impacts should be avoided.

    Wear work gloves and be careful when handling the slew drive.

    Use the holes of the rings in the slew drives to fix bolts for safe hoisting, handling and placement.

    Store only in a horizontal position and in closed rooms, keep it away from getting wet, the surface corrosion protection of exposed mating surfaces lasts approximately 1 month in closed packaging. Longer period storage requires special protective measures.



    Transporting unpacked slew rings

    Use suitable lifting gear/ never transport product vertically

    Unpacked slew drives can be transported with lifting gear under the following conditions:



    1. The lifting gear must be configured appropriately for the unit transport load.

    2. The ring bolts must be configured appropriately for the weight of the transport unit.

    3. The slew drive shall only be transported by itself.

    4. Transport within the company shall only be executed horizontally.
