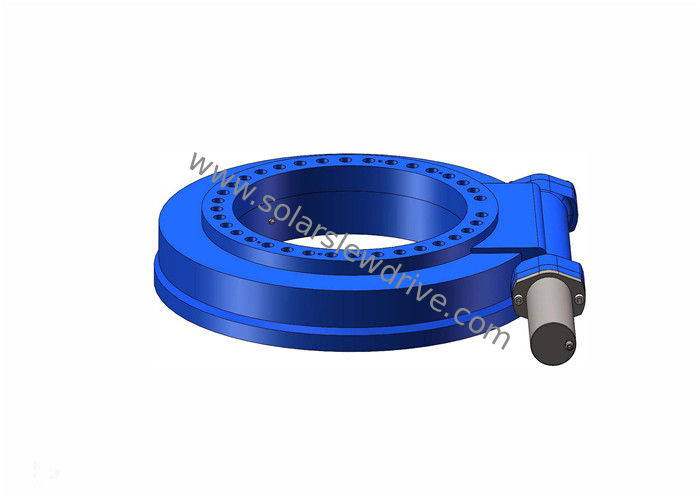

SE14 High Torque IP66 Enclosed Housing Hydraulic Slew Drive For Construction Machinery

SE14 High Torque IP66 Enclosed Housing Hydraulic Slew Drive For Construction Machinery

  • SE14 High Torque IP66 Enclosed Housing Hydraulic Slew Drive For Construction Machinery
  • SE14 High Torque IP66 Enclosed Housing Hydraulic Slew Drive For Construction Machinery
SE14 High Torque IP66 Enclosed Housing Hydraulic Slew Drive For Construction Machinery
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE14
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 14 Inch Gear Ratio: 85:1
Application: Satellite Antenna Place Of Origin: Changzhou, China
Driver: Hydraulic Motor/servo Motor Installation: Hotizontal
Color: As Requested Backlash: Less Than 0.1 Degree
High Light:

high torque hydraulic slew drive

,

enclosed housing hydraulic slew drive

,

hydraulic slew drive for construction machinery

SE14 High Torque Hydraulic Slewing Drive, IP66 Enclosed Housing For Construction Machinery



Product Description



Our slewing drive SE14 is powered with hourglass worm technology for maximum gear torque and the smoothest rotation. Typical slew drive applications include solar industry, truck cranes, man lifts, and utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. We offer different slew drive models with different moment load capacities. The standard slew drives are fitted with an open housing and single self-locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device.



The slew drive can be with worm gear, spur gear, bevel gear. And also for the inside slewing ring, it can be single-row ball slewing ring, and also can be double-row ball slewing ring. The one with double-row can take much more load. It can be chosen depended on your application.



SE Series Slewing Drive Technical Data



Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182



Application



Truck mounted crane application



Truck-mounted crane refers to a multi-action hoisting machinery that is installed on the chassis of a vehicle to vertically lift and horizontally move heavy objects within a certain range, also known as a truck-mounted crane.



Self-propelled curved arm climbing car application



The crank arm type aerial work vehicle is a lifting equipment used for high-altitude operations. It can cross obstacles for high-altitude operations. When the platform is lifted to any position, it can work while walking. The structure is compact and the steering is flexible. The width of the site can ensure that the equipment can enter Narrow passages and crowded work areas.



Application of tyre changer attachment



The large-scale tyre changer is specially used for tyre replacement of super heavy-duty mining trucks, with a maximum load capacity of 11t and can replace super-large tyres up to 4m.



Application of forestry machinery attachments



The main feature of the wood grabber is that it has an extended mechanical arm that can rotate around the center of rotation. In addition to a lifting mechanism, it also has a rotating mechanism and a grabbing mechanism to expand its working range from a vertical line to a vertical arc; After the device is equipped with a luffing mechanism, its working range will be expanded from a vertical arc to an annular space; when the rotating crane is equipped with a running mechanism that moves along the ground, it can work in a larger space.



Bridge inspection vehicle application



The bridge inspection vehicle is used for the inspection and maintenance of various grades and structures of highway bridges, transporting personnel, tools, and instruments to the bottom of the bridge, and performing under-bridge inspections including painting, cleaning, disassembly, repair, and maintenance.
