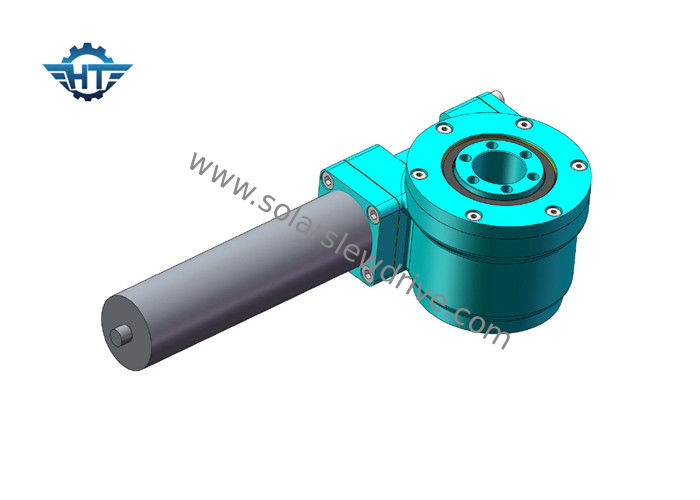

SE1 Worm Drive Small Slew Drive With 24VDC Motor Use In Solar Energy And Industrial

SE1 Worm Drive Small Slew Drive With 24VDC Motor Use In Solar Energy And Industrial

    • SE1 Worm Drive Small Slew Drive With 24VDC Motor Use In Solar Energy And Industrial
    • SE1 Worm Drive Small Slew Drive With 24VDC Motor Use In Solar Energy And Industrial
  • SE1 Worm Drive Small Slew Drive With 24VDC Motor Use In Solar Energy And Industrial

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1100/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Type: SE1 Slewing Drive Material: 42CrMo Or 50Mn
    Warranty: 5~10 Years Size: 3 Inch To 25 Inch
    Application: Industrial Color: Customer Required
    Structure: Single Axis Protection: IP66
    High Light:

    slew drive for solar tracker

    ,

    solar tracker drive



    SE1 High Transmission Ratio Small Slew Drive Used In Solar Energy And Construction Machinery



    Description



    The common applications are generally engineering and construction machinery. It can be also applied in solar, wind and a variety automatic tracking machinery which need long-term operating. Due to compact structure, short transmission chain, slew drive is easier to achieve high accuracy and easier digital control, so there are many applications in the field of industrial robots. The slew drive is easy to use and easy to install and save space. When select the suitable slew drive, first consider if the axial radial bearing, overturning torque and other parameters are satisfied with the use, second, the slew drive’s final output speed can not exceed 3 rpm, in order to ensure the normal service life of the product.



    Technical Data



    SE1 Worm Drive Small Slew Drive With 24VDC Motor Use In Solar Energy And Industrial



    Related Products



    SE Model Performance Parameters
    Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
    N.m N.m N.m kN kN degree Yes kg
    1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
    5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
    7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
    9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
    12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
    14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
    17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
    21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
    25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182
